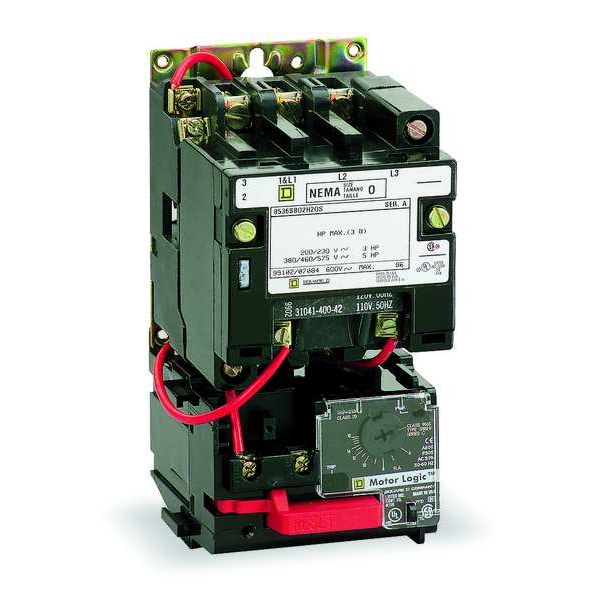

Arrancador magnético NEMA sin inversión, sin gabinete NEMA, calificación de 208V AC, 3 Polos, 1NO.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 30 to 90 A |
| Coil Volts | 208V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 30 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 90 A |
| NEMA Size | 3 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 50 HP |
| Features | Solid State Overload Relay |
| HP @ 3 Phase - 575V | 50 hp |
| Standards | CSA, UL Listed |
| Includes | Solid state overload relay |
| Hz | 60 |
| Height | 11 in |
| HP @ 3 Phase - 208V | 25 HP |
| Width | 6-1/2 in |
| Depth | 5-1/2 in |
| Enclosure Type | Open |
| Thermal Unit Code | Not Applicable |
| Operating Voltage | 600V AC |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Operator | None |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 11.09 in |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Operator Function | Not Applicable |
| Overall Width | 5.47 in |
| Maximum Overload Relay Current Setting | 90 A |
| Overall Depth | 6-1/2 in |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Trip Class | 10/20 |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600 V AC |
| Number of Auxillary Contacts | 0 |
| Coil Voltage | 208V AC |
| NEMA Enclosure Rating | No Enclosure |
| Frequency | 60 Hz |
| Current AC | 90 A |
| Includes Auxiliary Contacts | No |
| Minimum Overload Relay Current Setting | 30 A |
| Overload Protection Type | Electronic |
| Phase | Three |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Starter Style | NEMA |
| Package Quantity | 1 |
