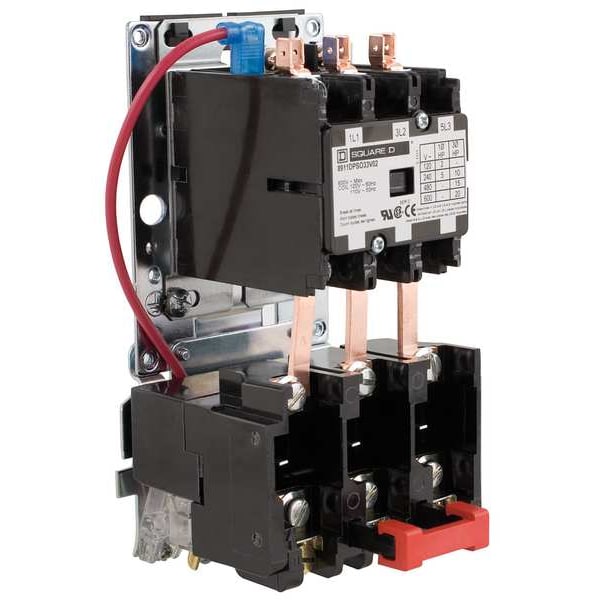

Sin inversión - Sin recinto Clasificación NEMA, 120V AC
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Coil Volts | 120 V AC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 7.5 HP |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 5 HP |
| Action | Nonreversing |
| Amps AC | 20 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 7.5 HP |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| Width | 3-1/2 in |
| Thermal Unit Code | G1 |
| Depth | 4.09 in |
| Includes | Trip-Free Reset Mechanism |
| Hz | 50/60 |
| Standards | REACH, RoHS, UL Listed |
| Height | 6.73 in |
| Reversing Capability | Non-Reversing |
| Overall Height | 6.73 in |
| Mounting Hole Distance - Height | 8.13 in |
| Horsepower @ Three Phase - 600V AC | 7.5 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Overall Depth | 4.09 in |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Phase | Three |
| Current AC | 20 A |
| Overall Width | 3-1/2 in |
| Overload Protection Type | Melting Alloy |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Series | Class 8911 Type DP |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Mechanical Operating Durability | 500,000 |
| Locked Rotor Load | 100 A @ 460V AC, 120 A @ 230V AC, 80 A @ 575V AC |
| Maximum Voltage Rating | 600 V AC |
| Package Quantity | 1 |
