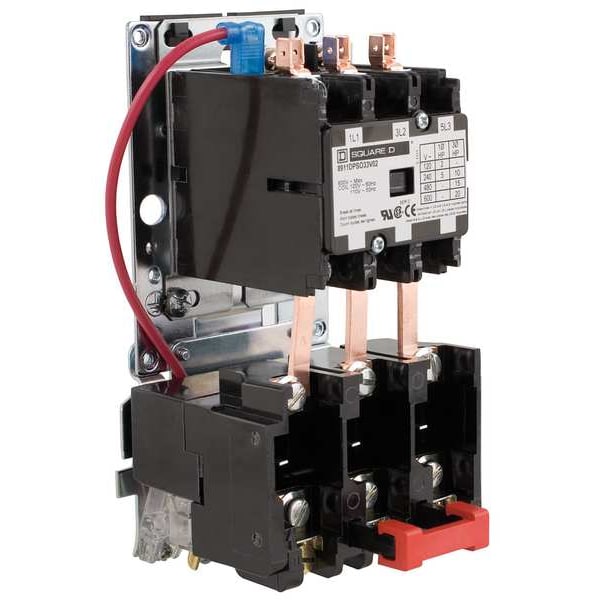

Sin reversión, sin recinto, calificación NEMA, 120V CA.
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Coil Volts | 120 V AC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 10 HP |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 575V | 15 HP |
| Action | Nonreversing |
| Amps AC | 30 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 15 HP |
| HP @ 1 Phase - 120V | 2 hp |
| Includes | Trip-Free Reset Mechanism |
| Width | 3-1/2 in |
| Thermal Unit Code | G3 |
| Depth | 4.09 in |
| Height | 6.73 in |
| Standards | REACH, RoHS, UL Listed |
| Hz | 50/60 |
| Coil Voltage | 120V AC |
| Overall Height | 6.73 in |
| Overload Protection Type | Melting Alloy |
| Series | Class 8911 Type DP |
| Mounting Hole Distance - Height | 8.13 in |
| Locked Rotor Load | 120 A @ 575V AC, 150 A @ 460V AC, 180 A @ 230V AC |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Current AC | 30 A |
| Mechanical Operating Durability | 500,000 |
| Phase | Three |
| Reversing Capability | Non-Reversing |
| Overall Width | 3-1/2 in |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Overall Depth | 4.09 in |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
