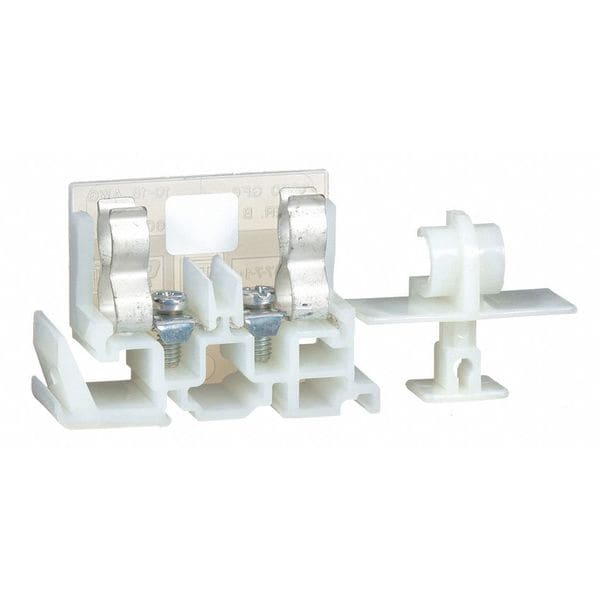

Open Fuse Block, H UL Class, 1 Poles, 600V AC/DC Volt Rating

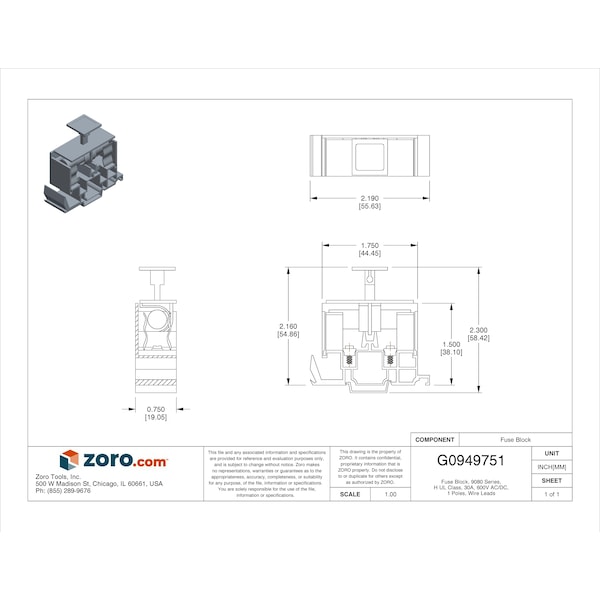

| CAD Available | Yes |
|---|---|
| Item | Open Fuse Block |
| UL Class | H |
| Series | 9080 |
| Number of Poles | 1 |
| Voltage Rating | 600V AC/DC |
| Connector Type | Wire Leads |
| Mounting Style | Bolt-Down |
| Wire Range | 18 AWG to 10 AWG |
| Fuse Block Design | Open |
| Body Material | Nylon |
| Width | 2.19 in |
| Length | 2.2 in |
| Height | 2.19 in |
| For Fuse Size | 1-1/2 in L x 13/16 in dia |
| For Fuse Series | 9080 |
| Fuse Type | Midget |
| Standards | CE Certified, CSA 62144, UL E60616 |
| Features | Mercury Free; clamp terminal zinc plated steel 18-20 lbf.in : AWG 18...AWG 10 copper) |
| RoHS Compliant | Yes |
| Special Features | Mercury Free, PVC Free, Toxic Heavy Metal Free, Warranty 18 Months |
| Number of Connections | 2 |
| Overall Depth | 3/4 in |
| Package Quantity | 1 |
