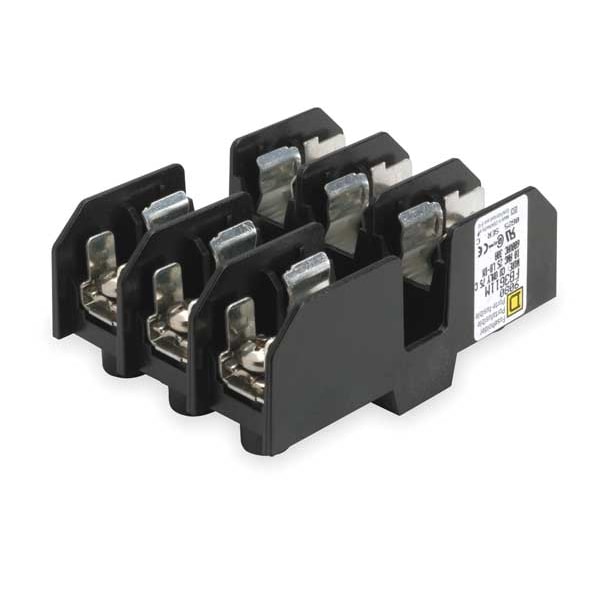

Open Fuse Block, M UL Class, 3 Poles, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | M |
| Series | 9080 |
| Number of Poles | 3 |
| Voltage Rating | 600V AC/DC |
| Connector Type | Wire Leads |
| Mounting Style | Panel |
| Wire Range | 14 AWG to 10 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 2.35 in |
| Length | 1.3 in |
| Height | 3.12 in |
| For Fuse Series | M |
| Standards | CE Certified, CSA 70360, UL E40747 |
| Fuse Type | Midget |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Features | Mercury Free; screw terminals 25 lbf.in AWG 14...AWG 10 copper |
| Special Features | Mercury Free, Toxic Heavy Metal Free, Warranty 18 Months |
| Overall Depth | 1.29 in |
| RoHS Compliant | Yes |
| Product Certifications | UL recognized E40747 CCN IZLT2; CSA file 70360 class 6225 01; CE |
| Terminal Tightening Torque | screw terminals 25 lbf.in (2.82 N.m) AWG 14 to AWG 10 copper |
| Operating Temperature | -40 to 257°F (-40 to 125°C) |
| Fuse Block or Holder DC Voltage Rating | Not Rated |
| Package Quantity | 1 |
