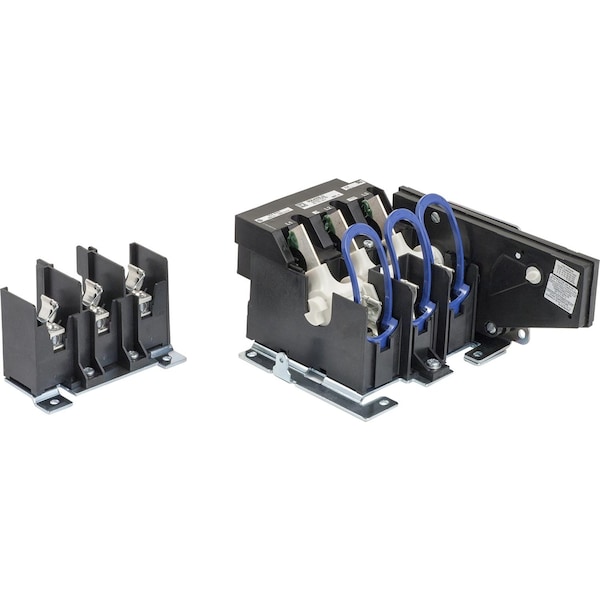

Mecanismo de operación, montaje de brida, profundidad variable, 30A, 600V, portafusibles, mecanismo de interruptor, manija de 6 pulgadas, NEMA 4X.
| Item | Switch |
|---|---|
| Product Or Component Type | switch |
| Fuse Type | R, H || J || K |
| Line Rated Current | 30 A |
| Maximum Horse Power Rating | 7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC |
| Product Mounting | flange rod variable depth |
| Provided Equipment | 6 in handle included NEMA 4/4X enclosures Stainless Steel |
| Disconnector Device Type | fusible disconnect switch |
| Associated Fuse Rating | 60 A 250 V || 30 A 600 V |
| Product Certifications | CSA || UL Recognized |
| Fuse Rating | 60 A 250 V; 30 A 600 V |
| Certifications | CSA; UL Recognized |
| Horsepower Rating | 7.5 hp 200 V AC; 7.5 hp 230 V AC; 15 hp 460 V AC; 20 hp 575 V AC; 5 hp 250 V DC |
| Range of Product | 9422T |
| Pvc Free | Yes |
| Package Quantity | 1 |
