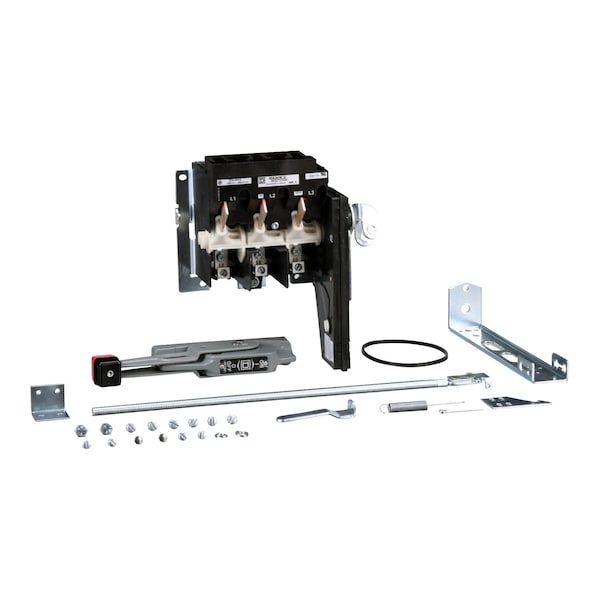

Mecanismo de operación, montado en brida, profundidad variable, 30A, 600V, sin fusible, mecanismo de interruptor, mango de 6 pulgadas, NEMA 4.
| Item | Switch |
|---|---|
| Product Certifications | UL Recognized || CSA |
| Line Rated Current | 30 A |
| Product Mounting | flange rod variable depth |
| Disconnector Device Type | non-fusible disconnect switch |
| Maximum Horse Power Rating | 7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC |
| Provided Equipment | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
| Product Or Component Type | switch |
| Certifications | UL Recognized; CSA |
| Horsepower Rating | 7.5 hp 200 V AC; 7.5 hp 230 V AC; 15 hp 460 V AC; 20 hp 575 V AC; 5 hp 250 V DC |
| Range of Product | 9422T |
| Pvc Free | Yes |
| Package Quantity | 1 |
