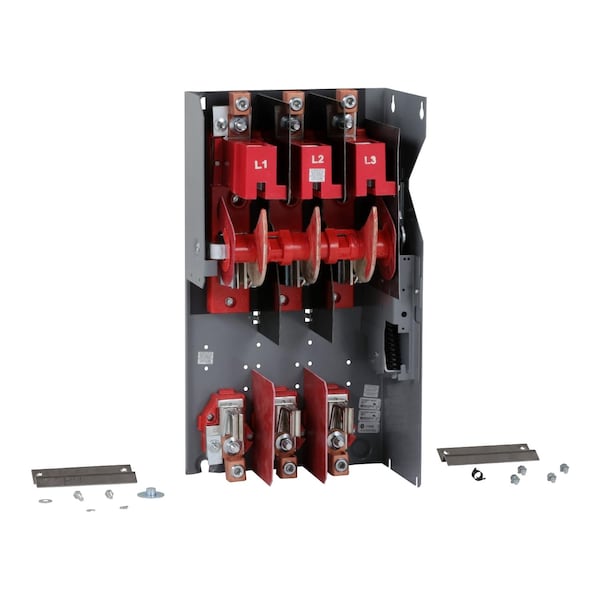

Mecanismo de operación montado en brida, con profundidad variable, diseñado para porta fusibles H, K, J, R de 400A y 600V. Incluye mecanismo de interruptor para un funcionamiento seguro y confiable.
| Item | Disconnect Switch |
|---|---|
| Product Or Component Type | Disconnect Switch |
| Product Mounting | flange rod variable depth |
| Disconnector Device Type | fusible disconnect switch |
| Associated Fuse Rating | 400 A 250/600 V |
| Fuse Type | R || K || J || H |
| Maximum Horse Power Rating | 75 hp 200 V AC || 125 hp 230 V AC || 250 hp 460 V AC || 350 hp 575 V AC || 50 hp 250 V DC |
| Line Rated Current | 400 A |
| Product Certifications | UL Recognized || CSA |
| Provided Equipment | ordered separately |
| Horsepower Rating | 75 hp 200 V AC; 125 hp 230 V AC; 250 hp 460 V AC; 350 hp 575 V AC; 50 hp 250 V DC |
| Certifications | UL Recognized; CSA |
| Range of Product | 9422T |
| Pvc Free | Yes |
| Package Quantity | 1 |
