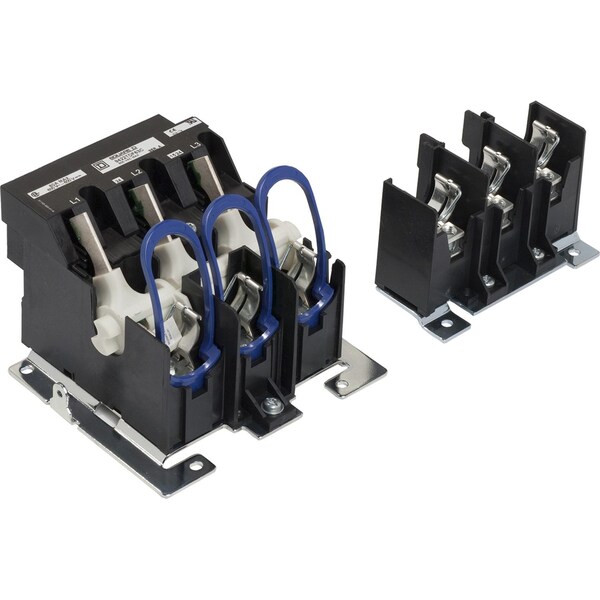

Mecanismo de operación, montado en brida, profundidad variable, 60A, 600V, fusible H, K, J, R, mecanismo de interruptor accionado por cable
| Item | Cable Optic Disconnect Switch |
|---|---|
| Line Rated Current | 60 A |
| Associated Fuse Rating | 60 A 600 V |
| Disconnector Device Type | fusible disconnect switch |
| Product Or Component Type | Disconnect Switch |
| Provided Equipment | ordered separately |
| Maximum Horse Power Rating | 15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC |
| Product Mounting | flange cable variable depth |
| Product Certifications | CSA || UL Recognized |
| Fuse Type | K || H || J || R |
| Horsepower Rating | 15 hp 200 V AC; 15 hp 230 V AC; 30 hp 460 V AC; 50 hp 575 V AC; 10 hp 250 V DC |
| Certifications | CSA; UL Recognized |
| Range of Product | 9422T |
| Package Quantity | 1 |
