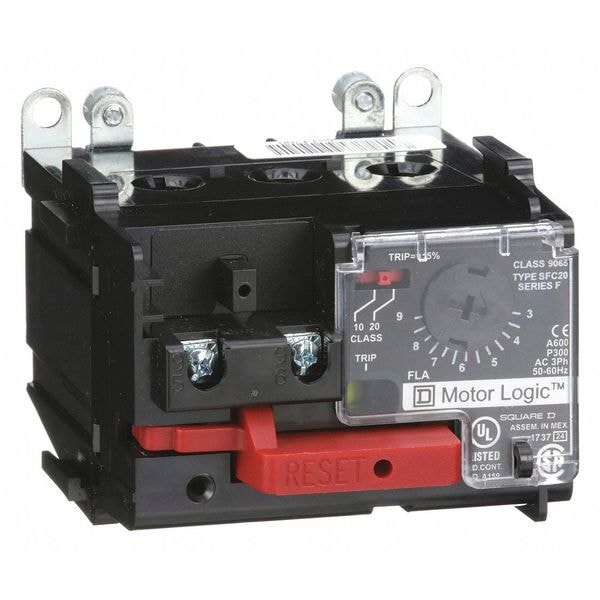

Relé de sobrecarga, de 3 a 9 A, 3 polos, 600 VCA, NEMA 00C.
| Item - Relay | NEMA Style Overload Relay |
|---|---|
| Item | NEMA Overload Relay |
| Use With - Contactors and Starters | Mfr. Class 8536 Starters |
| Current Range | 3 to 9 A |
| Overload Relay Current Range | 3 to 9 A |
| NEMA Size | 0 |
| Trip Class - Overload | 10, 20 |
| Width | 2.2 in |
| Number of Poles | 3 |
| Thermal Units Required | No |
| Reset Type - Relay | Manual |
| Height | 2.8 in |
| Sensing Method | Electronic |
| Depth | 4-1/2 in |
| Standards | REACH, RoHS |
| Voltage | 600 V AC |
| Overall Height - Relay | 2.8 in |
| Features | Ground Fault Detection |
| Trip Class | 10/20 |
| For Use With | Mfr. Class 8536 Starters |
| Body Depth - Relay | 4-1/2 in |
| Body Width - Relay | 2.2 in |
| Body Height - Relay | 2.8 in |
| Separate Mounting | Yes |
| Thermal Overload Type | solid state |
| [Ue] Rated Operational Voltage | 600 V AC |
| Mounting Support | mounting plate |
| Phase | Three |
| Maximum Overload Relay Current Setting | 9 A |
| Auxiliary Contact Form | 1 NC |
| Overload Protection Type | Electronic |
| Minimum Overload Relay Current Setting | 3 A |
| Includes Thermal Units | Not Applicable |
| Overall Height | 2.69 in |
| Reset Type | Manual |
| Compatible with Series | 9065 Motor Logic Solid State Overload Relays |
| Body Width | 3.26 in |
| Mounting Style | Separately Mounted |
| Body Height | 2.69 in |
| Relay Style | NEMA |
| Body Depth | 3.9 in |
| Number of Required Thermals | Not Applicable |
| Maximum Voltage Rating | 600 V AC |
| Package Quantity | 1 |
