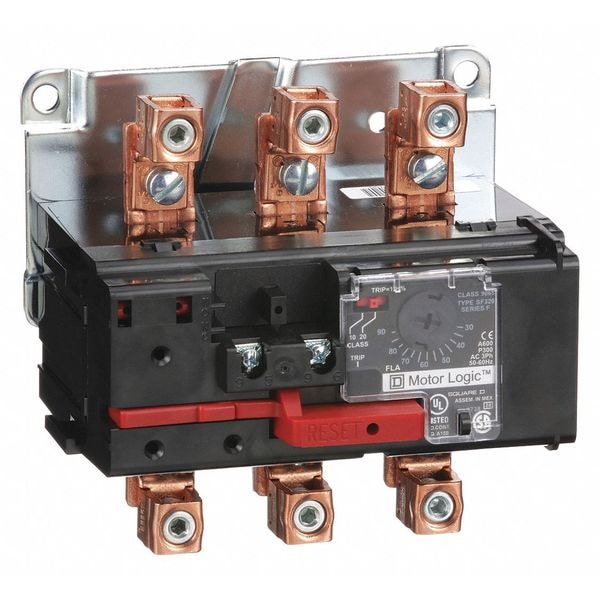

Relé de sobrecarga, de 30 a 90 amperios, 3 polos, 600VCA, NEMA 3.
| Item - Relay | NEMA Style Overload Relay |
|---|---|
| Item | NEMA Overload Relay |
| Current Range | 30 to 90 A |
| Use With - Contactors and Starters | Mfr. Class 8536 Starters |
| NEMA Size | 3 |
| Overload Relay Current Range | 30 to 90 A |
| Trip Class - Overload | 10, 20 |
| Width | 6.7 in |
| Number of Poles | 3 |
| Thermal Units Required | No |
| Reset Type - Relay | Manual |
| Sensing Method | Electronic |
| Height | 5.4 in |
| Depth | 8 in |
| Trip Class | 10/20 |
| Features | Ground Fault Detection |
| Body Depth - Relay | 8 in |
| For Use With | Mfr. Class 8536 Starters |
| Body Height - Relay | 5.4 in |
| Voltage | 600 V AC |
| Body Width - Relay | 6.7 in |
| Separate Mounting | Yes |
| Standards | REACH, RoHS |
| Overall Height - Relay | 5.4 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| Phase | Three |
| Thermal Overload Type | solid state |
| Mounting Support | panel |
| Relay Style | NEMA |
| Overload Protection Type | Electronic |
| Includes Thermal Units | Not Applicable |
| Compatible with Series | 9065 Motor Logic Solid State Overload Relays |
| Maximum Voltage Rating | 600 V AC |
| Number of Required Thermals | Not Applicable |
| Minimum Overload Relay Current Setting | 30 A |
| Body Width | 5.33 in |
| Reset Type | Manual |
| Body Depth | 4.45 in |
| Overall Height | 5.02 in |
| Maximum Overload Relay Current Setting | 90 A |
| Mounting Style | Separately Mounted |
| Body Height | 5.02 in |
| Auxiliary Contact Form | 1 NC |
| Package Quantity | 1 |
