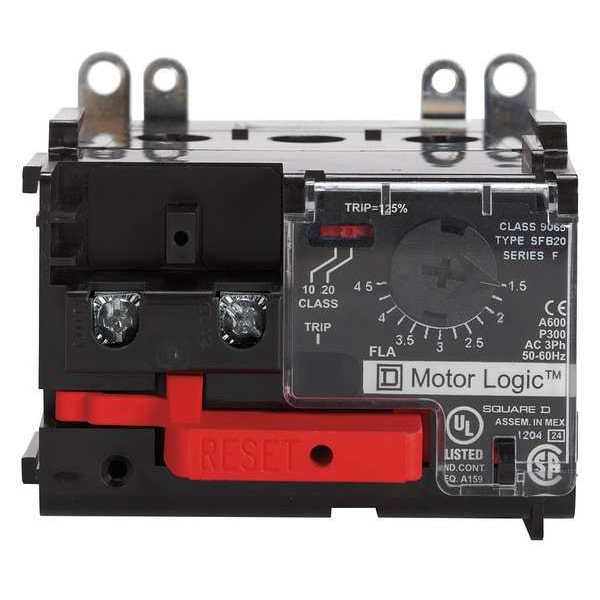

Ovrload Rely, 45 a 135A, 3P, 600VAC, NEMA 4 - Sobrecarga Rely, 45 a 135A, 3 polos, 600VAC, NEMA 4.
| Item - Relay | NEMA Style Overload Relay |
|---|---|
| Item | NEMA Overload Relay |
| Use With - Contactors and Starters | Mfr. Class 8536 Starters |
| Current Range | 45 to 135 A |
| Overload Relay Current Range | 45 to 135 A |
| NEMA Size | 4 |
| Trip Class - Overload | 10, 20 |
| Width | 5.3 in |
| Number of Poles | 3 |
| Thermal Units Required | No |
| Sensing Method | Electronic |
| Reset Type - Relay | Manual |
| Height | 2.9 in |
| Depth | 4-1/2 in |
| Voltage | 600 V AC |
| Standards | REACH, RoHS |
| Features | Ground Fault Detection |
| Overall Height - Relay | 2.9 in |
| Body Width - Relay | 5.3 in |
| Body Height - Relay | 2.9 in |
| Trip Class | 10/20 |
| Separate Mounting | Yes |
| Body Depth - Relay | 4-1/2 in |
| For Use With | Mfr. Class 8536 Starters |
| Phase | Three |
| Mounting Support | panel |
| [Ue] Rated Operational Voltage | 600 V AC |
| Thermal Overload Type | solid state |
| Overall Height | 5.92 in |
| Auxiliary Contact Form | 1 NC |
| Number of Required Thermals | Not Applicable |
| Maximum Voltage Rating | 600 V AC |
| Overload Protection Type | Electronic |
| Relay Style | NEMA |
| Maximum Overload Relay Current Setting | 135 A |
| Minimum Overload Relay Current Setting | 45 A |
| Includes Thermal Units | Not Applicable |
| Reset Type | Manual |
| Body Height | 5.92 in |
| Mounting Style | Separately Mounted |
| Body Width | 5.33 in |
| Body Depth | 4.53 in |
| Compatible with Series | 9065 Motor Logic Solid State Overload Relays |
| Package Quantity | 1 |
