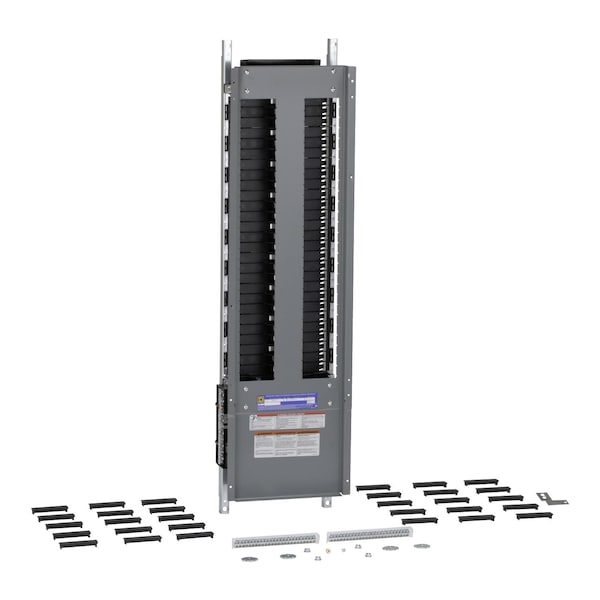

Tablero de distribución interior, NF, terminales principales, 250A, bus de cobre, ensamble de neutro de aluminio, 54 espacios para polos, 3 fases, 4 conductores, máximo de 600Y/347VAC.
| Width | 10.44 in |
|---|---|
| Material | copper |
| Standards | CSA C22.2 || UL 67 |
| Height | 45 in |
| Item | NF Panelboard,interior,main lug,250 A |
| [Iu] Rated Interrupted Current | 65 kA |
| Enclosure Nominal Width | 20 in |
| Enclosure Nominal Height | 56 in |
| [Ue] Rated Operational Voltage | 600Y/347 V AC |
| Enclosure Nominal Depth | 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12 |
| Tightening Torque | 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil) |
| Line Rated Current | 250 A |
| Number Of Spaces | 54 |
| Circuit Breaker Type | EDB, EDG, EDJ |
| Wiring Configuration | 4-wire |
| Phase | 3 phase |
| Load Center Type | main lugs |
| Connections - Terminals | lug line AWG 6...350 kcmil aluminium || lug neutral AWG 6...350 kcmil aluminium |
| Package Quantity | 1 |
