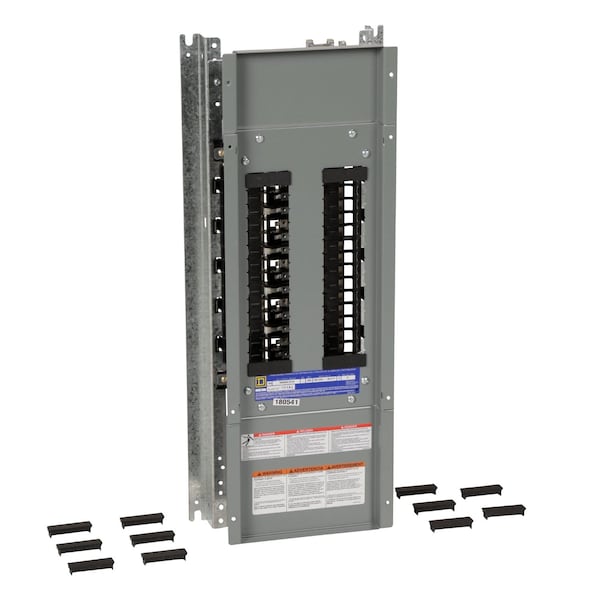

Panelboard Interior, QOB/QOB-VH/QHB, 225A, 240V AC/48V DC, main lugs, 3 phase Phase
| Item | Panelboard Interior |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Amps | 225A |
| Voltage | 240V AC / 48V DC |
| Phase | 3 phase |
| Height | 45 in |
| Width | 8.63 in |
| Series | QOB/QOB-VH/QHB |
| Bus Material | Copper |
| Standards | CSA || UL |
| Features | Mercury Free |
| Enclosure Nominal Width | 14 in |
| Tightening Torque | 40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 in² (13.30 to 177.3 mm²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.30 to 126.7 mm²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 in² (107.2 to 152 mm²) (AWG 4 to 300 kcmil) |
| Product Or Component Type | Interiors |
| Enclosure Nominal Height | 32 in |
| Rated Interrupted Current | 10 kA, 22 kA, 65 kA |
| Branch Circuit Breaker Type | QOB; QOB-VH; QHB |
| Enclosure Nominal Depth | 5-3/4 in |
| Number Of Spaces | 30 |
| Wiring Configuration | 4-wire |
| Connections - Terminals | Lug line AWG 6 to 350 kcmil aluminium; Lug neutral AWG 6 to 350 kcmil aluminium |
| Package Quantity | 1 |
