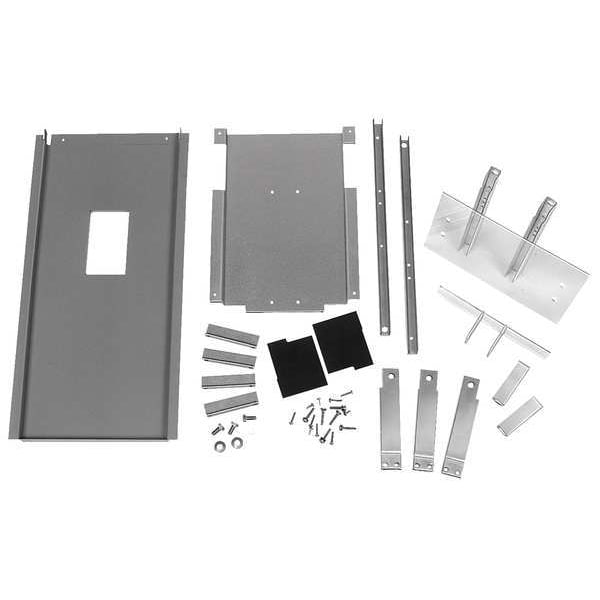

Panelboard Main Breaker Kit, JDL, JGL, JJL, JLL, JRL, 250A, 347V, 3 Phase
| Item | Panelboard Main Breaker Kit |
|---|---|
| Amps | 250A |
| Voltage | 347V |
| Phase | 3 |
| Height | 50 in |
| Width | 20 in |
| Depth | 5-3/4 in |
| Series | JDL, JGL, JJL, JLL, JRL |
| Included Enclosure Cover | Cover Included |
| For Use With | Square D J-Frame Panelboards |
| Standards | cULus |
| Includes | (1) Cover Plate, (1) Label, (1) Mounting Plate, (1) Screw Set, (2) Bracket for Support, (2) Rail Extension, (2) Rail Splice, (2) Terminals, (3) Connector |
| Length | 50 in |
| Frame Size | 225A/J |
| Compatible Circuit Breaker Series | JDL, JGL, JJL, JLL, JRL |
| Length (Straight Wireway) | 50 in |
| Tightening Torque | 6.8-7.3 N.m |
| Product Destination | circuit breaker 250-250 A |
| Accessory / Separate Part Category | installation accessory |
| Ground Bar Kit | cover plate 1 || mounting plate 1 || bracket for support 2 || screw set 1 || connector 3 || rail extension 2 || rail splice 2 || label 1 || terminal 3 |
| Amps AC | 250 A |
| Package Quantity | 1 |
