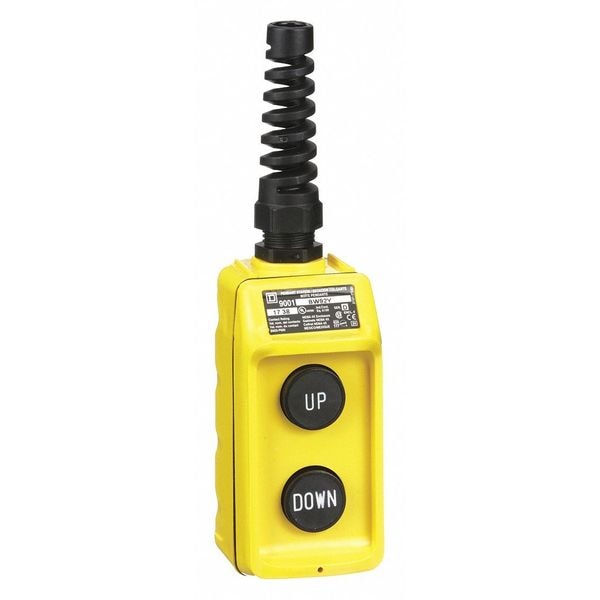

Estación de botón de presión colgante, arriba/abajo, 2NA, Interbloqueo mecánico, 1/3/3R/4/4X, Amarillo
| Item | Pendant Control Station |
|---|---|
| Contact Form | 2NO |
| Number of Gangs | 1 |
| Legend | Down, Up |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 1, 3, 3R, 4, 4X |
| Series | 9001BW |
| Hub Style | Dead-End |
| Contact Rating | 5A @ 600V AC/DC |
| Standards | CE, CSA, UL Listed |
| Housing Color | Yellow |
| Action | Momentary, Maintained |
| Hub | 1/2"-14 NPT |
| Mechanical Interlock | Yes |
| Height | 4.69 in |
| NEMA Contact Rating Designation | P600, B600 |
| Depth | 2.94 in |
| Width | 2.19 in |
| Housing Material | Polycarbonate/PET Polyester Blend |
| Number of Speeds | 1 |
| Operator Color | Black |
| IP Rating | Not Applicable |
| Enclosure Color | Yellow |
| Enclosure Material | Thermoplastic |
| Product Type | Pendant Control Station |
| Products By Industry | Fabricated Metals |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| Panel Cutout Diameter | Not Applicable |
| Mounting Orientation | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Maintained Action Release | Not Applicable |
| Overall Width | 2.19 in |
| Pilot Light Color | Not Applicable |
| DC Contact Rating | 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Minimum | -13 deg F |
| Operator Configuration | Buttons |
| AC Contact Rating | 0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V |
| NEMA Enclosure Rating | 4 |
| Overall Height | 4.69 in |
| Resistance Properties | Impact Resistant |
| Selector Switch Number of Positions | Not Applicable |
| Overall Depth | 2.94 in |
| Hazardous Location Specification | Not Rated |
| Hub Size - Maximum | 1/2 in |
| Package Quantity | 1 |
