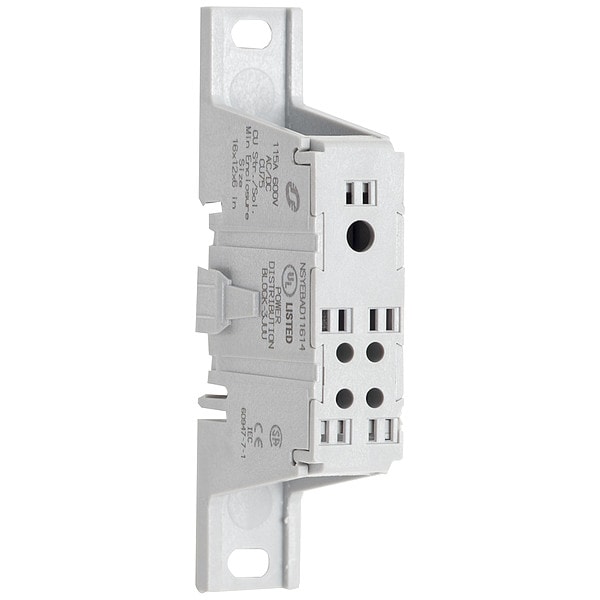

Bloque de distribución de energía, cobre, 600V AC/DC.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 14 to AWG 2 (Copper) |
| Secondary Connection/Pole | 4 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 10 (Copper) |
| Power Distribution Block Design | Finger-Safe |
| Voltage Rating | 600V AC/DC |
| Width | 0.85 in |
| Length | 4.14 in |
| Mounting | Screw Type; Panel; 35 mm DIN rail |
| Depth | 1.71 in |
| Standards | CE Certified, CSA Certified, CSA File 70361 Class 6228 01, NEMA, REACH Regulation, UL Listed, UL Listed File E323110 CCN QPQS, WEEE |
| Amps | 115 (Cu Conductor) |
| For Load Copper Wire Size - Maximum | 10 AWG |
| Secondary Wire Range | 14 to 10 AWG (Copper) |
| For Conductor Material | Copper |
| For Line Copper Wire Size - Minimum | 14 AWG |
| Line Connections/Pole | 1 |
| Overall Depth | 1.71 in |
| For Line Copper Wire Size - Maximum | 2 AWG |
| Overall Length | 4.14 in |
| Line Side Connection Type | Lug |
| Primary Wire Range | 14 to 2 AWG (Copper) |
| Maximum Current - Copper Conductor | 115 A |
| Overall Width | 0.85 in |
| Housing Color | Gray |
| Maximum Operating Temperature | 257 deg F |
| For Channel Size | 35 mm |
| Terminal Material | Aluminum |
| Minimum Operating Temperature | -40 deg F |
| RoHS Compliant | Yes |
| Special Features | Enables Ganging of the Blocks to Create Multipole Configurations According to Application Requirements, Enclosed IEC Versions of our NEMA 9080 Power Distribution Blocks, Finger-Safe, One Pole Modular Units with an Interlocking Dovetail Feature, Power Terminal Blocks are Finger Safe from the Front According to IP20, This Block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with Fuses and Circuit Breakers, This Block is UL Listed and CSA Certified and RoHS Compliant |
| Maximum Voltage | 600 V AC/DC |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Load Connections/Pole | 4 |
| Number of Circuits | 5 |
| Load Side Connection Type | Lug |
| Housing Material | Thermoplastic |
| Short Circuit Current Rating | 65 kA |
| Max. Operating Temp. | 257°F |
| Color | Gray |
| Features | Halogen free product; Mercury Free |
| Material | Thermoplastic |
| Electrical Connection | Tin plated Aluminium Lugs |
| Min. Operating Temp. | -40°F |
| Wire Strip Length | Line 0.63 in; Load 0.44 in top; Load 0.69 in bottom |
| Package Quantity | 1 |
