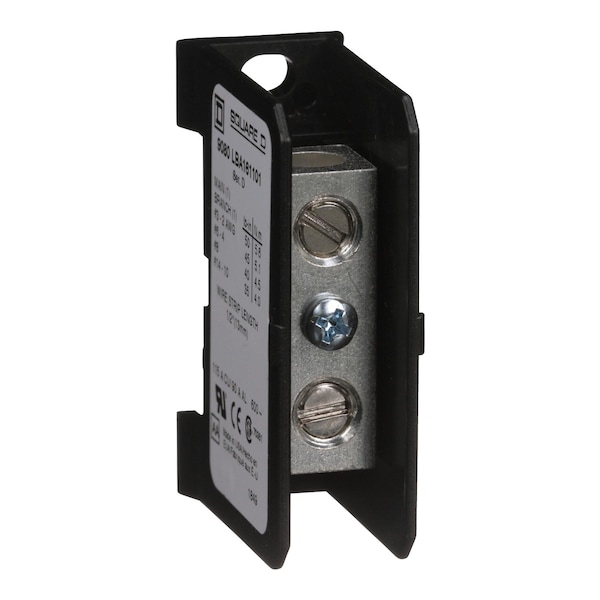

Bloque de distribución de energía, Linergy, 1 polo, 1 línea, 1 carga, 115A Cu, 90A Al, 600V
| Item | Power Distribution Block 600V 115A |
|---|---|
| Number of Poles | 1 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 14 to AWG 2 (Copper or Aluminium) |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 2 (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 2.29 in |
| Width | 0.85 in |
| Depth | 1.62 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Material | Thermoplastic |
| Overall Width | 0.85 in |
| Overall Length | 2.29 in |
| Overall Depth | 1.62 in |
| Maximum Voltage | 600 V AC/DC |
| For Load Copper Wire Size - Maximum | 2 AWG |
| For Line Aluminum Wire Size - Maximum | 2 AWG |
| For Line Copper Wire Size - Maximum | 2 AWG |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| For Conductor Material | Aluminum, Copper |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Maximum Current - Copper Conductor | 115 A |
| Line Connections/Pole | 1 |
| Load Side Connection Type | Lug |
| For Line Copper Wire Size - Minimum | 14 AWG |
| Housing Material | Thermoplastic |
| Load Connections/Pole | 1 |
| Line Side Connection Type | Lug |
| Terminal Material | Aluminum |
| Housing Color | Black |
| Maximum Operating Temperature | 257 deg F |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| Maximum Current - Aluminum Conductor | 90 A |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Mounting | Surface Mount |
| Amps | 90 (Al conductor), 115 (Cu Conductor) |
| Short Circuit Current Rating | 65 kA |
| Min. Operating Temp. | -40°F |
| Max. Operating Temp. | 257°F |
| Features | Mercury Free |
| Electrical Connection | Tin plated Aluminium Lugs |
| Wire Strip Length | 1/2 in (Line), 1/2 in (Load) |
| Number of Terminals | 1 line, 1 load |
| Number of Cables | line 1 , AWG 14...AWG 2, copper or aluminium, load 1 , AWG 14...AWG 2, copper or aluminium |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Product or Component Type | Power Distribution Block |
| Range of Product | 9080LB |
| Connections - Terminals | line lug 50 lbf.in AWG 3...AWG 2 copper or aluminium, load lug 35 lbf.in AWG 14 copper, line lug 45 lbf.in AWG 6...AWG 4 copper or aluminium, line lug 40 lbf.in AWG 8 copper or aluminium, line lug 35 lbf.in AWG 12...AWG 10 copper or aluminium, line lug 35 lbf.in AWG 14 copper, load lug 50 lbf.in AWG 3...AWG 2 copper or aluminium, load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium, load lug 40 lbf.in AWG 8 copper or aluminium, load lug 35 lbf.in AWG 12...AWG 10 copper or aluminium |
| Wire Stripping Length | line: 0.5 in, load: 0.5 in |
| Line Rated Current | 115-115 A copper, 90-90 A aluminium |
| Product Compatibility | 9080LB11 |
| Ambient Air Temperature For Operation | -40-257°F |
| Package Quantity | 1 |
