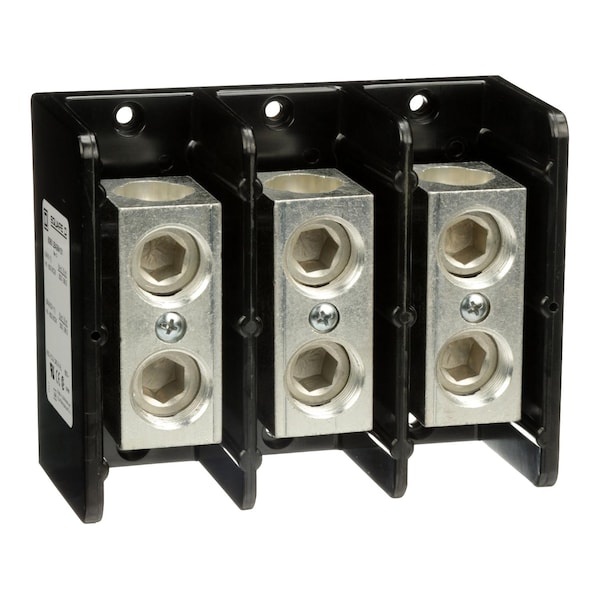

Bloque de distribución de energía, Linergy, 1 polo, 1 línea, 1 carga, 420A de cobre, 340A de aluminio, 600V.
| Item | Power Distribution Block 600V 420A |
|---|---|
| Number of Poles | 1 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 4 to 600 kcmil (Copper or Aluminium) |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | AWG 4 to 600 kcmil (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Width | 2.28 in |
| Depth | 2.91 in |
| Standards | CE, UL recognized E60616 CCN XCFR2, CSA file 70361 class 6228 01 |
| Length | 4-3/4 in |
| Material | phenolic: block |
| Overall Width | 2.28 in |
| Overall Length | 4-3/4 in |
| For Load Aluminum Wire Size - Maximum | 600 kcmil |
| For Load Copper Wire Size - Maximum | 600 kcmil |
| For Line Copper Wire Size - Minimum | 4 AWG |
| Maximum Voltage | 600 V AC/DC |
| Maximum Current - Aluminum Conductor | 340 A |
| Terminal Material | Aluminum |
| Maximum Current - Copper Conductor | 420 A |
| Maximum Operating Temperature | 302 deg F |
| Load Side Connection Type | Lug |
| For Line Copper Wire Size - Maximum | 600 kcmil |
| For Load Copper Wire Size - Minimum | 4 AWG |
| For Load Aluminum Wire Size - Minimum | 4 AWG |
| Line Connections/Pole | 1 |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| Housing Material | Phenolic |
| For Line Aluminum Wire Size - Maximum | 600 kcmil |
| Line Side Connection Type | Lug |
| For Conductor Material | Aluminum, Copper |
| Housing Color | Black |
| Overall Depth | 2.91 in |
| Load Connections/Pole | 1 |
| Amps | 340 (Al conductor), 420 (Cu Conductor) |
| Mounting | Surface Mount |
| Features | Mercury Free |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -40°F |
| Short Circuit Current Rating | 100 kA UL 508 A |
| Electrical Connection | Tin plated Aluminium Lugs |
| Wire Strip Length | 1.38 in (Line), 1.38 in (Load) |
| Height | 4-3/4 in |
| Line Rated Current | 420-420 A copper, 340-340 A aluminium |
| Number of Terminals | 1 line, 1 load |
| Wire Stripping Length | line: 1.38 in, load: 1.38 in |
| Ambient Air Temperature For Operation | -40-302°F |
| Product Compatibility | 9080LB41 |
| Mounting Support | surface mount |
| Product or Component Type | Power Distribution Block |
| Connections - Terminals | line lug 500 lbf.in AWG 4...600 kcmil copper or aluminium, load lug 500 lbf.in AWG 4...600 kcmil copper or aluminium |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Number of Cables | line 1 , AWG 4...600 kcmil, copper or aluminium, load 1 , AWG 4...600 kcmil, copper or aluminium |
| Range of Product | 9080LB |
| Terminal Tightening Torque | Line lug 500 lbf.in (56.49 N.m) AWG 4 to 600 kcmil copper or aluminium; Load lug 500 lbf.in (56.49 N.m) AWG 4 to 600 kcmil copper or aluminium |
| Wire Size | Line 1, AWG 4 to 600 kcmil, copper or aluminium; Load 1, AWG 4 to 600 kcmil, copper or aluminium |
| End Barrier | 9080LB41 |
| Terminals Per Pole | 1 line; 1 load |
| Current Rating | 420 A copper; 340 A aluminium |
| Block Material | Phenolic: block |
| Package Quantity | 1 |
