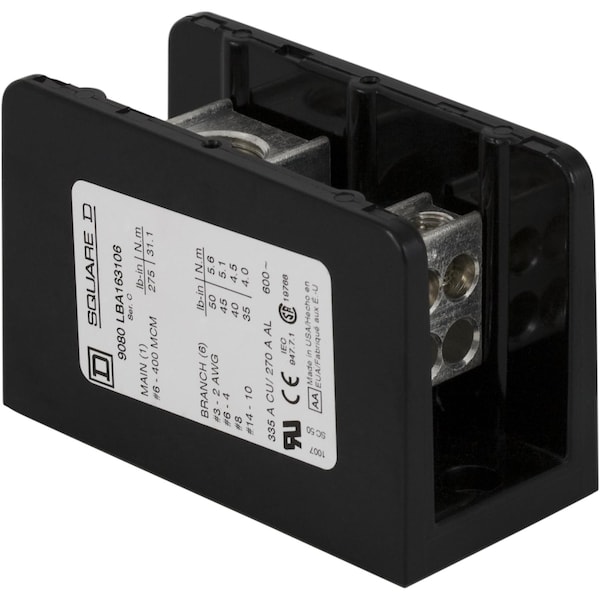

Bloque de distribución de energía, Linergy, 1 polo, 1 línea, 6 cargas, 380A Cu, 600V.
| Item | Power Distribution Block 600V 380A Tlb |
|---|---|
| Number of Poles | 1 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 4 to 500 kcmil (Copper) |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 2 (Copper) |
| Voltage Rating | 600V AC/DC |
| Length | 4 in |
| Width | 1.94 in |
| Standards | CSA file 70361 class 6228 01, UL recognized E60616 CCN XCFR2, CE |
| Depth | 2.61 in |
| Material | phenolic: block |
| Amps | 380 (Cu Conductor) |
| Mounting | Surface Mount |
| Short Circuit Current Rating | 100 kA UL 508 A |
| Features | Mercury Free |
| Min. Operating Temp. | -40°F |
| Max. Operating Temp. | 302°F |
| Wire Strip Length | Line 1.06 in; Load 1 in bottom; Load 1.56 in top |
| Electrical Connection | Tin plated Copper Lugs |
| Height | 4 in |
| Ambient Air Temperature For Operation | -40-302°F |
| Connections - Terminals | load lug 40 lbf.in AWG 8 copper, load lug 35 lbf.in AWG 14...AWG 10 copper, line lug 375 lbf.in AWG 4...500 kcmil copper, load lug 50 lbf.in AWG 2 copper, load lug 45 lbf.in AWG 6...AWG 4 copper |
| Range of Product | 9080LB |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Mounting Support | surface mount |
| Number of Terminals | 1 line, 6 load |
| Product or Component Type | Power Distribution Block |
| Product Compatibility | 9080LB31 |
| Wire Stripping Length | line: 1.06 in, load: 1 in for bottom connection, load: 1.56 in for top connection |
| Number of Cables | line 6 , AWG 4...500 kcmil, copper, load 1 , AWG 14...AWG 2, copper |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Line Rated Current | 380-380 A copper |
| Wire Size | Line 6, AWG 4 to 500 kcmil, copper; Load 1, AWG 14 to AWG 2, copper |
| End Barrier | 9080LB31 |
| Terminals Per Pole | 1 line; 6 load |
| Block Material | Phenolic: block |
| Current Rating | 380 A copper |
| Terminal Tightening Torque | Load lug 40 lbf.in (4.52 N.m) AWG 8 copper; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper; Line lug 375 lbf.in (42.37 N.m) AWG 4 to 500 kcmil copper; Load lug 50 lbf.in (5.65 N.m) AWG 2 copper; Load lug 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper |
| Certifications | CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2; CE |
| Package Quantity | 1 |
