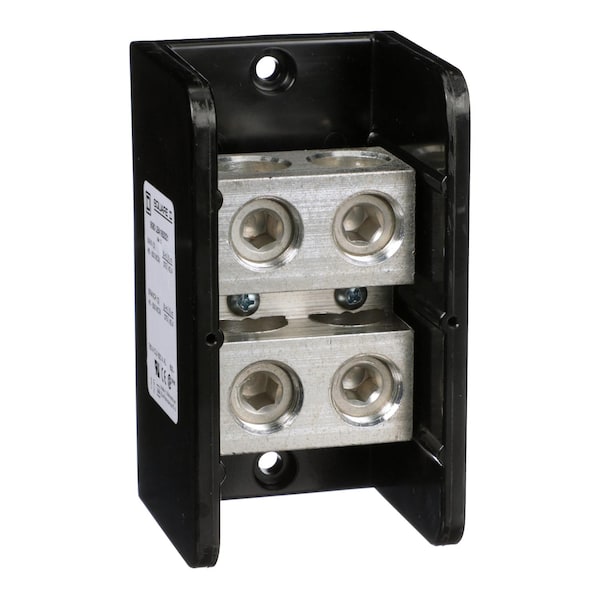

Bloque de distribución de energía, Linergy, 1 polo, 2 líneas, 2 cargas, 760A Cu, 620A Al, 600V
| Item | Power Distribution Block 600V 760A |
|---|---|
| Number of Poles | 1 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | AWG 4 to 500 kcmil (Copper or Aluminium) |
| Secondary Connection/Pole | 2 |
| Secondary Wire Range (AWG) | AWG 4 to 500 kcmil (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 5-1/2 in |
| Depth | 3.13 in |
| Width | 3.17 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Overall Width | 3.17 in |
| Overall Length | 5-1/2 in |
| Material | Phenolic |
| For Load Aluminum Wire Size - Maximum | 500 kcmil |
| Housing Color | Black |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| For Conductor Material | Aluminum, Copper |
| Terminal Material | Aluminum |
| Load Side Connection Type | Lug |
| Maximum Voltage | 600 V AC/DC |
| Load Connections/Pole | 2 |
| Housing Material | Phenolic |
| Overall Depth | 3.13 in |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Maximum Operating Temperature | 302 deg F |
| For Line Aluminum Wire Size - Maximum | 500 kcmil |
| Line Connections/Pole | 2 |
| For Load Aluminum Wire Size - Minimum | 4 AWG |
| Maximum Current - Aluminum Conductor | 620 A |
| For Load Copper Wire Size - Maximum | 500 kcmil |
| For Line Copper Wire Size - Minimum | 4 AWG |
| Maximum Current - Copper Conductor | 760 A |
| For Load Copper Wire Size - Minimum | 4 AWG |
| Line Side Connection Type | Lug |
| Amps | 620 (Al conductor), 760 (Cu Conductor) |
| Mounting | Surface Mount |
| Electrical Connection | Tin plated Aluminium Lugs |
| Max. Operating Temp. | 302°F |
| Features | Mercury Free |
| Min. Operating Temp. | -40°F |
| Wire Strip Length | 1.38 in (Line), 1.38 in (Load) |
| Range of Product | 9080LB |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Number of Cables | line 2 , AWG 4...500 kcmil, copper or aluminium, load 2 , AWG 4...500 kcmil, copper or aluminium |
| Line Rated Current | 760-760 A copper, 620-620 A aluminium |
| Connections - Terminals | line lug 375 lbf.in AWG 4...500 kcmil copper or aluminium, load lug 375 lbf.in AWG 4...500 kcmil copper or aluminium |
| Number of Terminals | 2 line, 2 load |
| Ambient Air Temperature For Operation | -40-302°F |
| Product Compatibility | 9080LB51 |
| Product or Component Type | Power Distribution Block |
| Wire Stripping Length | line: 1.38 in, load: 1.38 in |
| Package Quantity | 1 |
