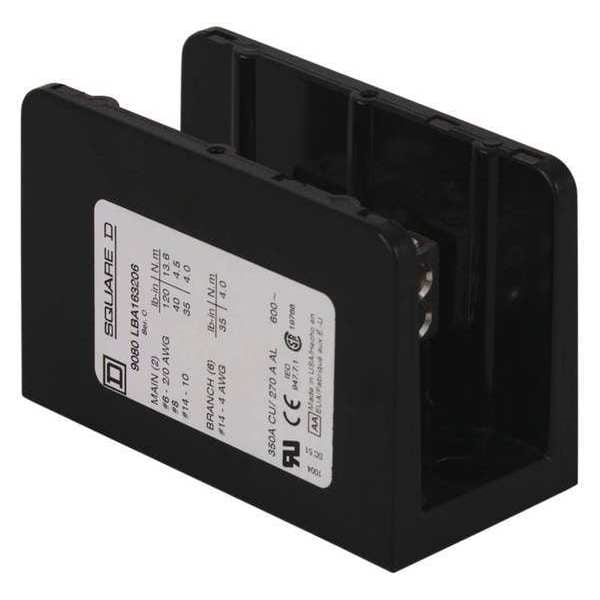

Bloque de distribución de energía, Linergy, 1 polo, 2 líneas, 6 cargas, 350A de cobre, 270A de aluminio, 600V.
| Item | Power Distribution Block 600V 350A |
|---|---|
| Number of Poles | 1 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | AWG 14 to AWG 2/0 (Copper or Aluminium) |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 4 (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 4 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Width | 1.94 in |
| Depth | 2.61 in |
| Maximum Current - Copper Conductor | 350 A |
| Line Connections/Pole | 2 |
| Overall Length | 4 in |
| Terminal Material | Aluminum |
| For Line Copper Wire Size - Maximum | 2/0 AWG |
| For Conductor Material | Aluminum, Copper |
| For Load Aluminum Wire Size - Maximum | 4 AWG |
| Load Side Connection Type | Lug |
| Maximum Voltage | 600 V AC/DC |
| Overall Depth | 2.61 in |
| For Line Aluminum Wire Size - Maximum | 2/0 AWG |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| For Line Copper Wire Size - Minimum | 14 AWG |
| For Load Copper Wire Size - Maximum | 4 AWG |
| Housing Color | Black |
| Overall Width | 1.94 in |
| Load Connections/Pole | 6 |
| Maximum Current - Aluminum Conductor | 270 A |
| Housing Material | Phenolic |
| Line Side Connection Type | Lug |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Maximum Operating Temperature | 302 deg F |
| Mounting | Surface Mount |
| Amps | 270 (Al conductor), 350 (Cu Conductor) |
| Min. Operating Temp. | -40°F |
| Max. Operating Temp. | 302°F |
| Electrical Connection | Tin plated Aluminium Lugs |
| Short Circuit Current Rating | 65 kA |
| Features | Mercury Free |
| Wire Strip Length | Load 0.44 in top; Load 0.75 in bottom; Line 1.06 in |
| Material | Phenolic |
| Terminal Tightening Torque | Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; Line lug 120 lbf.in (13.56 N.m) AWG 6 to AWG 2/0 copper or aluminium; Line lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper or aluminium; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 4 copper or aluminium |
| Wire Stripping Length | Load: 0.44 in (11.18 mm) for top connection; Load: 0.75 in (19.05 mm) for bottom connection; Line: 1.06 in (26.92 mm) |
| Wire Size | Line 2, AWG 14 to AWG 2/0, copper or aluminium; Load 6, AWG 14 to AWG 4, copper or aluminium |
| Block Material | Phenolic: block |
| Ambient Air Temperature For Operation | -40 to 302°F |
| Height | 4 in |
| Terminals Per Pole | 6 load; 2 line |
| End Barrier | 9080LB31 |
| Current Rating | 270 A aluminium; 350 A copper |
| Line Rated Current | 270-270 A aluminium, 350-350 A copper |
| Number of Cables | line 2 , AWG 14...AWG 2/0, copper or aluminium, load 6 , AWG 14...AWG 4, copper or aluminium |
| Range of Product | 9080LB |
| Connections - Terminals | line lug 40 lbf.in AWG 8 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Product or Component Type | Power Distribution Block |
| Number of Terminals | 6 load, 2 line |
| Package Quantity | 1 |
