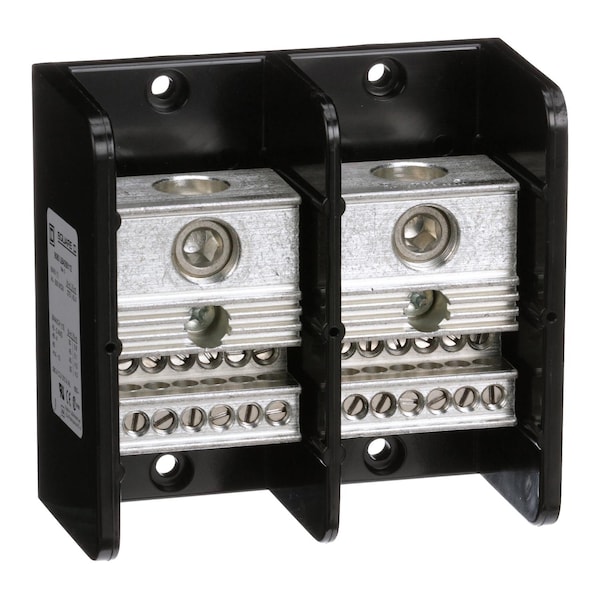

Bloque de distribución de energía, Linergy, 2 polos, 1 línea, 12 cargas, 380A Cu, 310A Al, 600V.
| Item | Power Distribution Block 600V 380A Tlb |
|---|---|
| Number of Poles | 2 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 4 to 500 kcmil (Copper or Aluminium) |
| Secondary Connection/Pole | 12 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 2 (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Standards | CE, CSA file 70361 class 6228 01, UL recognized E60616 CCN XCFR2 |
| Depth | 3.13 in |
| Width | 3.17 in |
| Length | 5-1/2 in |
| Overall Length | 5-1/2 in |
| Overall Width | 3.17 in |
| Material | phenolic: block |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| Load Connections/Pole | 12 |
| Maximum Operating Temperature | 302 deg F |
| Maximum Current - Copper Conductor | 380 A |
| Maximum Voltage | 600 V AC/DC |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Line Side Connection Type | Lug |
| Overall Depth | 3.13 in |
| For Line Copper Wire Size - Minimum | 4 AWG |
| Housing Material | Phenolic |
| Load Side Connection Type | Lug |
| Maximum Current - Aluminum Conductor | 310 A |
| For Conductor Material | Aluminum, Copper |
| Line Connections/Pole | 1 |
| Terminal Material | Aluminum |
| For Load Copper Wire Size - Maximum | 2 AWG |
| For Line Aluminum Wire Size - Maximum | 500 kcmil |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Housing Color | Black |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Amps | 310 (Al conductor), 380 (Cu Conductor) |
| Mounting | Surface Mount |
| Max. Operating Temp. | 302°F |
| Electrical Connection | Tin plated Aluminium Lugs |
| Wire Strip Length | Line 1.31 in; Load 0.75 in top; Load 1.19 in bottom |
| Features | Mercury Free |
| Min. Operating Temp. | -40°F |
| Short Circuit Current Rating | 65 kA |
| Height | 5-1/2 in |
| Connections - Terminals | load lug 50 lbf.in AWG 3...AWG 2 copper or aluminium, load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium, load lug 40 lbf.in AWG 8 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, line lug 375 lbf.in AWG 4...500 kcmil copper or aluminium |
| Product or Component Type | Power Distribution Block |
| Ambient Air Temperature For Operation | -40-302°F |
| Number of Cables | line 1 , AWG 4...500 kcmil, copper or aluminium, load 12 , AWG 14...AWG 2, copper or aluminium |
| Line Rated Current | 380-380 A copper, 310-310 A aluminium |
| Number of Terminals | 1 line, 12 load |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Wire Stripping Length | line: 1.31 in, load: 0.75 in for top connection, load: 1.19 in for bottom connection |
| Short-Circuit Current | 65 kA |
| Mounting Support | surface mount |
| Range of Product | 9080LB |
| Product Compatibility | 9080LB52 |
| Wire Size | Line 1, AWG 4 to 500 kcmil, copper or aluminium; Load 12, AWG 14 to AWG 2, copper or aluminium |
| Terminal Tightening Torque | Load lug 50 lbf.in (5.65 N.m) AWG 3 to AWG 2 copper or aluminium; Load lug 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper or aluminium; Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper or aluminium; Line lug 375 lbf.in (42.37 N.m) AWG 4 to 500 kcmil copper or aluminium |
| End Barrier | 9080LB52 |
| Block Material | Phenolic: block |
| Terminals Per Pole | 1 line; 12 load |
| Certifications | CE; CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2 |
| Current Rating | 380 A copper; 310 A aluminium |
| Package Quantity | 1 |
