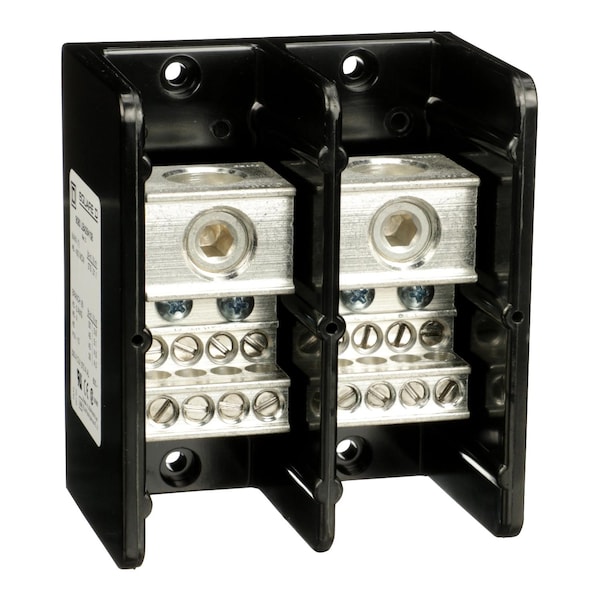

Bloque de distribución de energía, Linergy, 2 polos, 1 línea, 8 cargas, 335A Cu, 270A Al, 600V
| Item | Power Distribution Block 600V 335A Tlb |
|---|---|
| Number of Poles | 2 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 4 to 600 kcmil (Copper or Aluminium) |
| Secondary Connection/Pole | 8 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 2 (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 4-3/4 in |
| Width | 4.16 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Depth | 2.91 in |
| Overall Length | 4-3/4 in |
| Material | Phenolic |
| Overall Width | 4.16 in |
| For Conductor Material | Aluminum, Copper |
| Terminal Material | Aluminum |
| For Line Copper Wire Size - Minimum | 4 AWG |
| For Line Copper Wire Size - Maximum | 600 kcmil |
| For Line Aluminum Wire Size - Maximum | 600 kcmil |
| Overall Depth | 2.91 in |
| Load Connections/Pole | 8 |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Line Connections/Pole | 1 |
| Housing Color | Black |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| Maximum Operating Temperature | 302 deg F |
| For Load Copper Wire Size - Maximum | 2 AWG |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| Line Side Connection Type | Lug |
| Load Side Connection Type | Lug |
| Housing Material | Phenolic |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Maximum Current - Copper Conductor | 335 A |
| Maximum Current - Aluminum Conductor | 270 A |
| Maximum Voltage | 600 V AC/DC |
| Mounting | Surface Mount |
| Amps | 270 (Al conductor), 335 (Cu Conductor) |
| Electrical Connection | Tin plated Aluminium Lugs |
| Wire Strip Length | Line 1.06 in; Load 0.56 in top; Load 1 in bottom |
| Short Circuit Current Rating | 65 kA |
| Max. Operating Temp. | 302°F |
| Features | Mercury Free |
| Min. Operating Temp. | -40°F |
| Wire Stripping Length | line: 1.06 in, load: 0.56 in for top connection, load: 1 in for bottom connection |
| Ambient Air Temperature For Operation | -40-302°F |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Range of Product | 9080LB |
| Line Rated Current | 335-335 A copper, 270-270 A aluminium |
| Product Compatibility | 9080LB42 |
| Connections - Terminals | load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium, load lug 40 lbf.in AWG 8 copper or aluminium, load lug 50 lbf.in AWG 2 copper or aluminium, line lug 275 lbf.in AWG 6...400 kcmil copper or aluminium, load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium |
| Number of Cables | line 1 , AWG 4...600 kcmil, copper or aluminium, load 8 , AWG 14...AWG 2, copper or aluminium |
| Product or Component Type | Power Distribution Block |
| Number of Terminals | 1 line, 8 load |
| Package Quantity | 1 |
