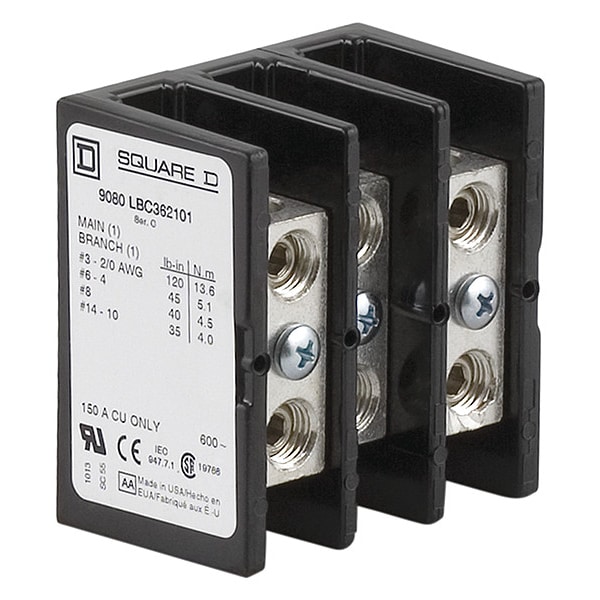

Block de distribución de energía, Linergy, 3 polos, 1 línea, 1 carga, 150A de cobre, 600V.
| Item | Power Distribution Block 600V 150A |
|---|---|
| Number of Poles | 3 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 18 to AWG 1/0 (Copper) |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | AWG 18 to AWG 1/0 (Copper) |
| Voltage Rating | 600V AC/DC |
| Length | 2.88 in |
| Standards | UL recognized E60616 CCN XCFR2, CSA file 70361 class 6228 01, CE |
| Depth | 1.78 in |
| Width | 2-3/4 in |
| Amps | 150 (Cu Conductor) |
| Mounting | Surface Mount |
| Electrical Connection | Tin plated Copper Lugs |
| Features | Mercury Free |
| Wire Strip Length | 3/4 in (Line), 3/4 in (Load) |
| Material | phenolic: block |
| Short Circuit Current Rating | 65 kA |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -40°F |
| Ambient Air Temperature For Operation | -40-302°F |
| Line Rated Current | 150-150 A copper |
| Connections - Terminals | line lug 50 lbf.in AWG 6...AWG 1/0 copper, line lug 40 lbf.in AWG 8 copper, line lug 35 lbf.in AWG 14...AWG 10 copper, load lug 50 lbf.in AWG 6...AWG 1/0 copper, load lug 40 lbf.in AWG 8 copper, load lug 35 lbf.in AWG 14...AWG 10 copper |
| Height | 2.88 in |
| Range of Product | 9080LB |
| Short-Circuit Current | 65 kA |
| Mounting Support | surface mount |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Product Compatibility | 9080LB23 |
| Number of Cables | line 1 , AWG 18...AWG 1/0, copper, load 1 , AWG 18...AWG 1/0, copper |
| Wire Stripping Length | line: 0.75 in, load: 0.75 in |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Number of Terminals | 1 line, 1 load |
| Product or Component Type | Power Distribution Block |
| Terminal Tightening Torque | Line lug 50 lbf.in (5.65 N.m) AWG 6 to AWG 1/0 copper; Line lug 40 lbf.in (4.52 N.m) AWG 8 copper; Line lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper; Load lug 50 lbf.in (5.65 N.m) AWG 6 to AWG 1/0 copper; Load lug 40 lbf.in (4.52 N.m) AWG 8 copper; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper |
| Wire Size | Line 1, AWG 18 to AWG 1/0, copper; Load 1, AWG 18 to AWG 1/0, copper |
| End Barrier | 9080LB23 |
| Terminals Per Pole | 1 line; 1 load |
| Block Material | Phenolic: block |
| Certifications | UL recognized E60616 CCN XCFR2; CSA file 70361 class 6228 01; CE |
| Current Rating | 150 A copper |
| Package Quantity | 1 |
