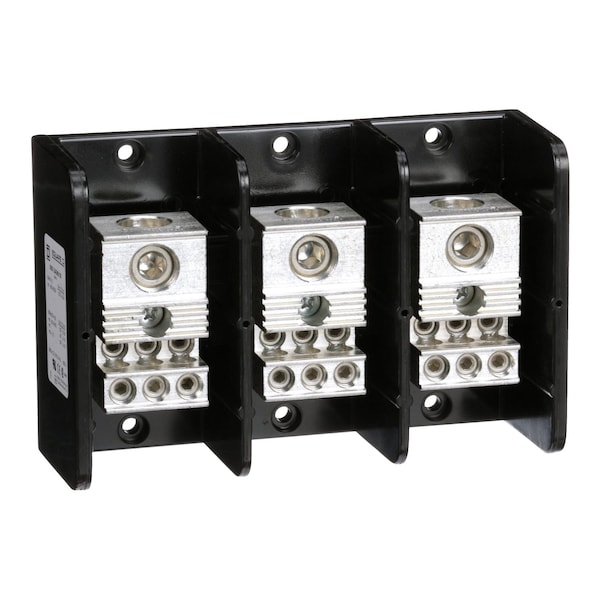

Bloque de distribución de energía, Linergy, 3 polos, 1 línea, 6 cargas, 380A de cobre, 310A de aluminio, 600V.
| Item | Power Distribution Block 600V 380A |
|---|---|
| Number of Poles | 3 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | AWG 4 to 500 kcmil (Copper or Aluminium) |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 2/0 (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Length | 5-1/2 in |
| Depth | 3.13 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Width | 8.54 in |
| Overall Length | 5-1/2 in |
| Overall Width | 8.54 in |
| Material | Phenolic |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Terminal Material | Aluminum |
| For Line Copper Wire Size - Minimum | 4 AWG |
| Maximum Operating Temperature | 302 deg F |
| Line Connections/Pole | 1 |
| For Conductor Material | Aluminum, Copper |
| Line Side Connection Type | Lug |
| Load Side Connection Type | Lug |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Overall Depth | 3.13 in |
| Maximum Voltage | 600 V AC/DC |
| Maximum Current - Aluminum Conductor | 310 A |
| Load Connections/Pole | 6 |
| Housing Material | Phenolic |
| Housing Color | Black |
| Maximum Current - Copper Conductor | 380 A |
| For Load Copper Wire Size - Maximum | 2/0 AWG |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| For Load Aluminum Wire Size - Maximum | 2/0 AWG |
| For Line Aluminum Wire Size - Maximum | 500 kcmil |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Amps | 310 (Al conductor), 380 (Cu Conductor) |
| Mounting | Surface Mount |
| Min. Operating Temp. | -40°F |
| Wire Strip Length | Line 1.31 in; Load 0.75 in top; Load 1.19 in bottom |
| Electrical Connection | Tin plated Aluminium Lugs |
| Short Circuit Current Rating | 65 kA |
| Features | Mercury Free |
| Max. Operating Temp. | 302°F |
| Ambient Air Temperature For Operation | -40-302°F |
| Connections - Terminals | load lug 40 lbf.in AWG 8 copper or aluminium, load lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, line lug 375 lbf.in AWG 4...500 kcmil copper or aluminium |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Number of Cables | load 1 , AWG 14...AWG 2/0, copper or aluminium, line 6 , AWG 4...500 kcmil, copper or aluminium |
| Line Rated Current | 380-380 A copper, 310-310 A aluminium |
| Wire Stripping Length | line: 1.31 in, load: 0.75 in for top connection, load: 1.19 in for bottom connection |
| Number of Terminals | 1 line, 6 load |
| Range of Product | 9080LB |
| Product or Component Type | Power Distribution Block |
| Product Compatibility | 9080LB53 |
| Package Quantity | 1 |
