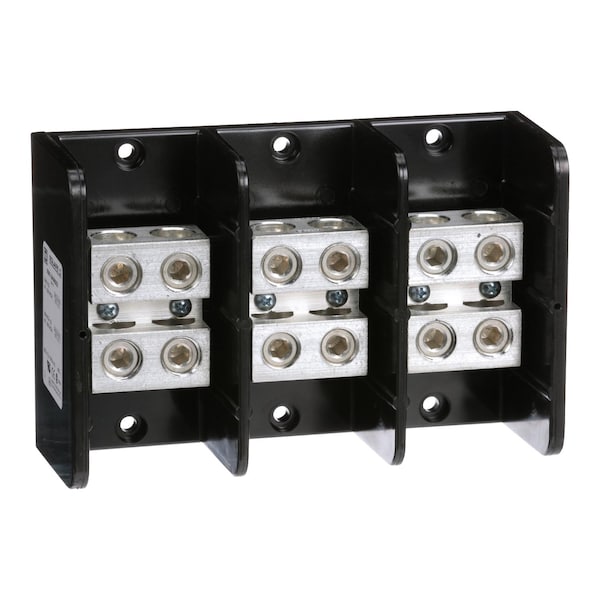

Bloque de distribución de energía, Linergy, 3 polos, 2 líneas, 2 cargas, 620A de cobre, 500A de aluminio, 600V.
| Item | Power Distribution Block 600V 620A |
|---|---|
| Number of Poles | 3 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | AWG 6 to 350 kcmil (Copper or Aluminium) |
| Secondary Connection/Pole | 2 |
| Secondary Wire Range (AWG) | AWG 6 to 350 kcmil (Copper or Aluminium) |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC/DC |
| Depth | 3.13 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Length | 5-1/2 in |
| Width | 8.54 in |
| Material | Phenolic |
| Overall Width | 8.54 in |
| Overall Length | 5-1/2 in |
| Line Side Connection Type | Lug |
| For Line Copper Wire Size - Minimum | 6 AWG |
| For Line Aluminum Wire Size - Maximum | 350 kcmil |
| Load Connections/Pole | 2 |
| For Load Aluminum Wire Size - Maximum | 350 kcmil |
| Housing Color | Black |
| Housing Material | Phenolic |
| For Conductor Material | Aluminum, Copper |
| Load Side Connection Type | Lug |
| Line Connections/Pole | 2 |
| For Load Copper Wire Size - Minimum | 6 AWG |
| Maximum Current - Copper Conductor | 620 A |
| Overall Depth | 3.13 in |
| Terminal Material | Aluminum |
| Maximum Current - Aluminum Conductor | 500 A |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| Maximum Operating Temperature | 302 deg F |
| Maximum Voltage | 600 V AC/DC |
| For Load Copper Wire Size - Maximum | 350 kcmil |
| For Line Copper Wire Size - Maximum | 350 kcmil |
| For Load Aluminum Wire Size - Minimum | 6 AWG |
| Amps | 500 (Al conductor), 620 (Cu Conductor) |
| Mounting | Surface Mount |
| Min. Operating Temp. | -40°F |
| Electrical Connection | Tin plated Aluminium Lugs |
| Wire Strip Length | 1.06 in (Line), 1.06 in (Load) |
| Short Circuit Current Rating | 100 kA UL 508 A |
| Weight | 1.4 kg |
| Max. Operating Temp. | 302°F |
| Features | Mercury Free |
| Height | 5-1/2 in |
| Ambient Air Temperature For Operation | -40 to 302°F |
| Certifications | CE; CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2 |
| Terminal Tightening Torque | Line lug 275 lbf.in (31.07 N.m) AWG 4 to 350 kcmil copper or aluminium; Load lug 275 lbf.in (31.07 N.m) AWG 4 to 350 kcmil copper or aluminium |
| Wire Size | Line 2, AWG 6 to 350 kcmil, copper or aluminium; Load 2, AWG 6 to 350 kcmil, copper or aluminium |
| Wire Stripping Length | Line: 1.06 in (26.92 mm); Load: 1.06 in (26.92 mm) |
| Current Rating | 620 A copper; 500 A aluminium |
| Block Material | Phenolic: block |
| End Barrier | 9080LB53 |
| Terminals Per Pole | 2 line; 2 load |
| Number of Cables | line 2 , AWG 6...350 kcmil, copper or aluminium, load 2 , AWG 6...350 kcmil, copper or aluminium |
| Line Rated Current | 620-620 A copper, 500-500 A aluminium |
| Product or Component Type | Power Distribution Block |
| Range of Product | 9080LB |
| Number of Terminals | 2 line, 2 load |
| Connections - Terminals | line lug 275 lbf.in AWG 4...350 kcmil copper or aluminium, load lug 275 lbf.in AWG 4...350 kcmil copper or aluminium |
| Package Quantity | 1 |
