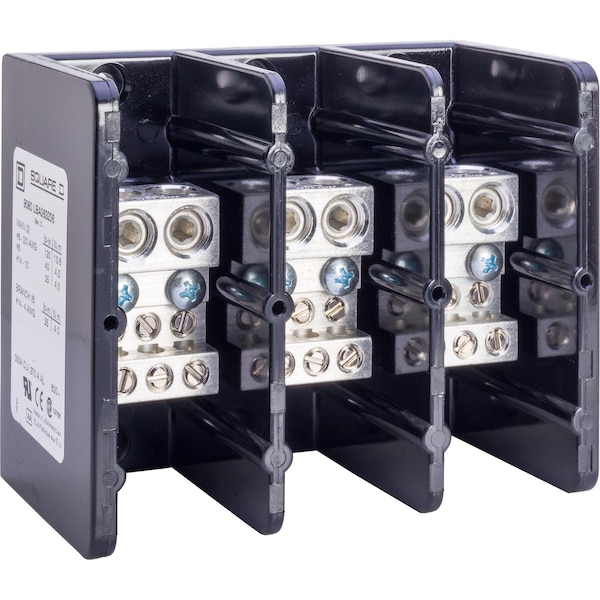

Power distribution block, Linergy, 3 pole, 2 line, 6 load, 350A Cu, 270A Al, 600V
| Item | Linergy power distribution block,3 pole |
|---|---|
| Number of Poles | 3 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | AWG 14 to AWG 2/0 (Copper or Aluminium) |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | AWG 14 to AWG 4 (Copper or Aluminium) |
| Voltage Rating | 600V AC/DC |
| Amps | 270 (Al conductor), 350 (Cu Conductor) |
| Width | 5 in |
| Mounting | Surface Mount |
| Length | 4 in |
| Standards | CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01 |
| Depth | 2.61 in |
| Material | Phenolic |
| Min. Operating Temp. | -40°F |
| Short Circuit Current Rating | 65 kA |
| Features | Mercury Free |
| Wire Strip Length | Load 0.44 in top; Load 0.75 in bottom; Line 1.06 in |
| Max. Operating Temp. | 302°F |
| Electrical Connection | Tin plated Aluminium Lugs |
| Line Rated Current | 270-270 A aluminium, 350-350 A copper |
| Product Compatibility | 9080LB33 |
| Number of Cables | line 2 , AWG 14...AWG 2/0, copper or aluminium, load 6 , AWG 14...AWG 4, copper or aluminium |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Ambient Air Temperature For Operation | -40-302°F |
| Connections - Terminals | line lug 40 lbf.in AWG 8 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium |
| Wire Stripping Length | load: 0.44 in for top connection, load: 0.75 in for bottom connection, line: 1.06 in |
| Range of Product | 9080LB |
| Number of Terminals | 2 load, 6 line |
| [Ics] Rated Service Breaking Capacity | 100 kA UL 508 A |
| Product or Component Type | Power Distribution Block |
| Package Quantity | 1 |
