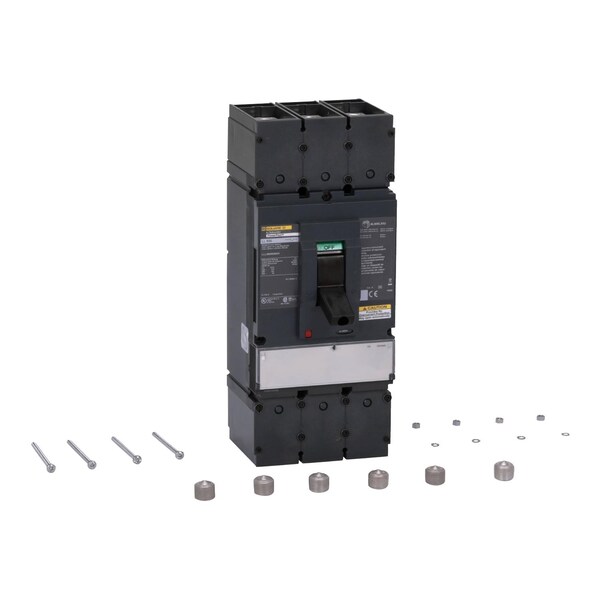

Powerpact Automatic Moulded Case Switch, 600V AC, 600A, 3 Poles
| Item | Powerpact Automatic Moulded Case Switch |
|---|---|
| Voltage | 600V AC |
| Amps | 600A |
| Number of Poles | 3 |
| Max. Wire Size | 500 kcmil ( aluminium/copper ) |
| Min. Wire Size | AWG 2/0 |
| Series | L-Frame |
| Height | 13.38 in |
| Width | 5.51 in |
| Depth | 6.61 in |
| Mounting Mode | unit mount |
| Magnetic Tripping Current | 6600-6600 A |
| Line Rated Current | 600 A |
| Breaking Capacity Code | L |
| Trip Unit Technology | magnetic |
| Awg Gauge | AWG 2/0...500 kcmil aluminium/copper) |
| Tightening Torque | 50-50 N.m 70-240 mm2² (AWG 2/0...500 kcmil) |
| Terminal Identifier | AL600LS52K3 |
| Short-Circuit Withstand | 125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489 |
| Product Or Component Type | automatic switch |
| Electrical Connection | lugs line || lugs load |
| Product Certifications | UL Listed || IEC || CSA |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Quantity | 1 |
