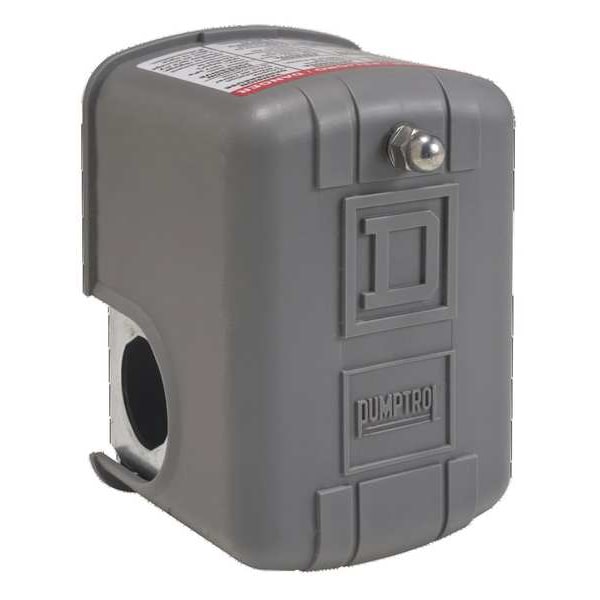

Interruptor de presión, (1) puerto, 1/4 pulgada FNPS, DPST, 40 a 100 psi, acción inversa
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Water Pump |
| Manual Switch Action | None |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Factory On/Off Setting | 50/30 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 20 to 30 psi |
| Pressure Switch Range | 40 to 100 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Reverse |
| NEMA Rating | 1 |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| HP @ 3 Phase - 240V | 1 hp |
| HP @ 1 Phase - 240V | 1 hp |
| HP @ 1 Phase - 120V | 1 hp |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Series | 9013FRG |
| AC Contact Rating | 10A @ 230V |
| Phase | Single, Three |
| DC Contact Rating | 1/4 HP @ 115VDC, 1/4 HP @ 230VDC |
| Unloader | No Unloader |
| Contact Form | DPST |
| Product Type | Water Pump Switch |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Actuator Style | Diaphragm |
| Horsepower @ Three Phase - 240V AC | 1 HP |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Pressure Switch Action Type | Reverse |
| Package Quantity | 1 |
