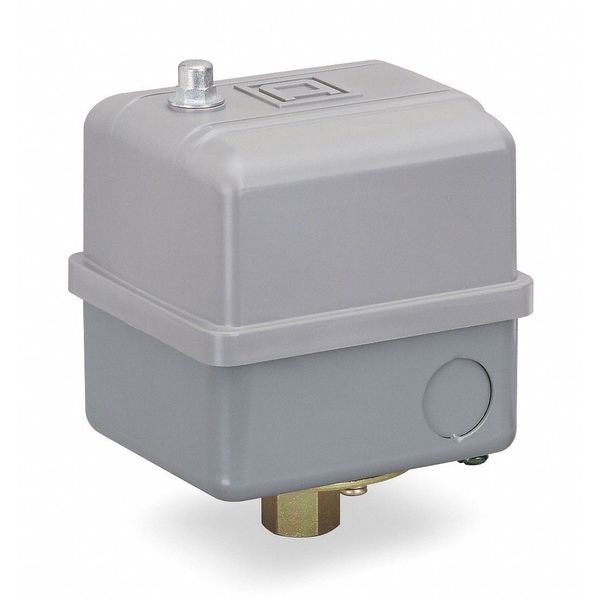

Interruptor de presión, (1) puerto, 3/8 pulgadas FNPS, DPST, 32 a 250 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor and Water Pump |
| Manual Switch Action | Auto, Off, On |
| Pressure Switch Port Type | (1) Port, 3/8 in FNPS |
| Pressure Switch Factory On/Off Setting | 145/175 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 24 to 45 psi |
| Pressure Switch Range | 32 to 250 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| HP @ 1 Phase - 240V | 3 hp |
| AC Contact Rating | 10A @ 575V |
| NEMA Rating | 1 |
| HP @ 3 Phase - 240V | 5 hp |
| Temp. Range | -22 Degrees to 257 Degrees F |
| HP @ 3 Phase - 480V | 5 HP |
| Series | 9013GHG |
| Special Features | Nitrile (Buna-N) Diaphragm |
| HP @ 1 Phase - 120V | 2 hp |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| Contact Form | DPST |
| Features | Nitrile Diaphragm |
| DC Contact Rating | 1 HP @ 115VDC, 1 HP @ 230VDC |
| Unloader | No Unloader |
| Phase | Single, Three |
| Product Type | Air Pressure Switch, Water |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Actuator Style | Diaphragm |
| Pressure Switch Action Type | Standard |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Package Quantity | 1 |
