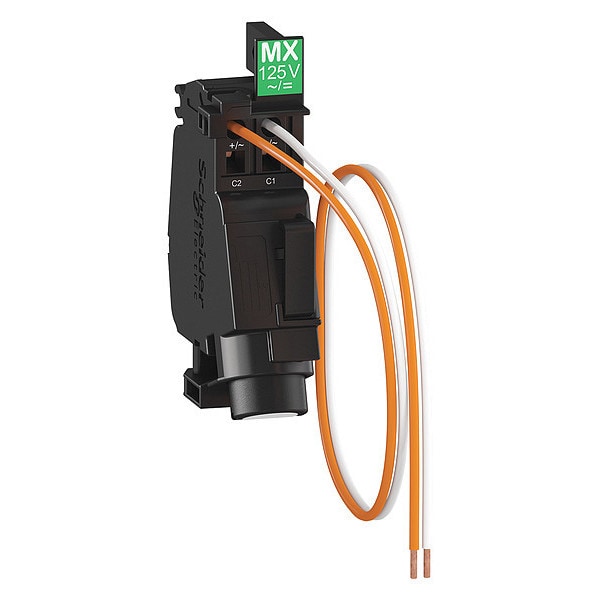

Prewired Shunt Trip, 208 a 240, 277V CA/250V CD, 0 Polos
| Item | Prewired Shunt Trip |
|---|---|
| Voltage | 208 to 240, 277V AC/250V DC |
| Number of Poles | 0 |
| For Use With | PowerPact B and Compact NSXm Circuit Breaker |
| Frame Type | 125A, BD, BG, BJ |
| Length | 1 m |
| AC Voltage Rating | 208/277V AC |
| Min. Operating Temp. | -13 Degrees F |
| Max. Operating Temp. | 158 deg F |
| DC Voltage Rating | 250V DC |
| Range | ComPact |
| Voltage Release Type | opening coil || shunt trip release |
| Device Short Name | MX |
| Auxiliary Connection Terminal | copper |
| Device Application | control |
| Response Time | < 50 ms |
| Control Type | standard |
| Control Signal Type | impulse || maintained |
| Wire Stripping Length | 8 mm |
| Impulse Duration | >= 20 ms |
| Product Or Component Type | voltage release |
| Threshold Tripping Voltage | 0.7 Un opening |
| [Uc] Control Circuit Voltage | 220...240 V AC 50 Hz || 208...240 V AC 60 Hz || 277 V AC 60 Hz || 250 V DC |
| Range Compatibility | ComPact (ComPacT NSXm new generation) || ComPact (ComPact NSXm) || PowerPact (PowerPact B) |
| Package Quantity | 1 |
