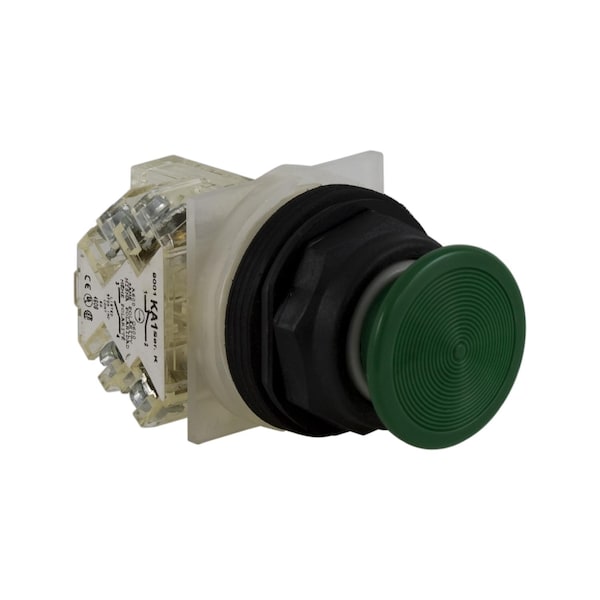

Botón pulsador, Harmony 9001SK, de plástico, tipo seta de 35mm, color verde, 30mm, con retorno por resorte, 1 contacto normalmente abierto.
| Size | 30 mm |
|---|---|
| Type of Operator | spring return |
| Item | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS |
| Bezel Material | plastic |
| Standards | UL 508, JIS C 852, JIS C 4520, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1 |
| Nema Degree of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Contact Operation | standard |
| Device Presentation | product |
| Contacts Type And Composition | O, 1 C |
| Range of Product | Harmony 9001SK |
| Cap/Operator or Lens Colour | green |
| Ip Degree of Protection | IP66 |
| Product or Component Type | push-button |
| Mounting Diameter | 30 mm |
| Operator Additional Information | screw-on plastic with set screw |
| Operator Profile | mushroom Ø 35 mm |
| Device Short Name | 9001SK |
| Mechanical Durability | 5,000,000 cycle |
| Package Quantity | 1 |
