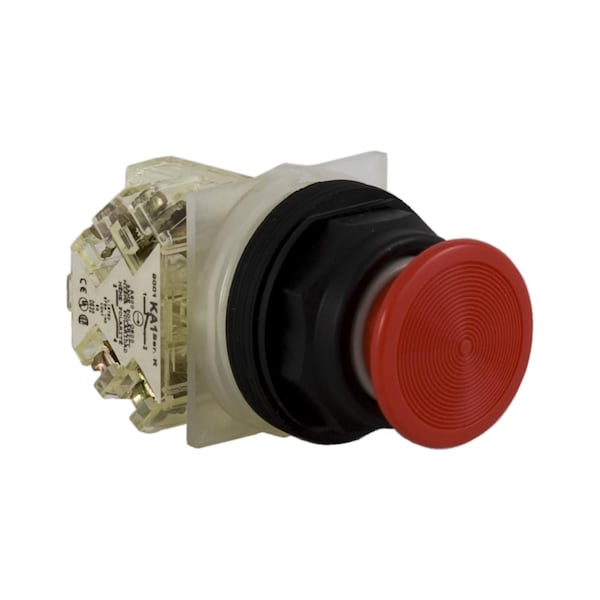

Botón de presión, Harmony 9001SK, plástico, botón de seta de 35mm, rojo, 30mm, retorno por resorte, 1 NA.
| Size | 30 mm |
|---|---|
| Item | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS |
| Bezel Material | plastic |
| Standards | JIS C 4520 || UL 508 || JIS C 852 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 |
| Operator Additional Information | screw-on plastic with set screw |
| Contact Operation | standard |
| Device Short Name | 9001SK |
| Cap/Operator Or Lens Colour | red |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Or Component Type | push-button |
| Type Of Operator | spring return |
| Mechanical Durability | 5,000,000 cycle |
| Contacts Type And Composition | 1 NO |
| Device Presentation | product |
| Mounting Diameter | 30 mm |
| Ip Degree Of Protection | IP66 |
| Operator Profile | mushroom Ø 35 mm, red mushroom Ø 35 mm |
| Range of Product | Harmony 9001SK |
| Package Quantity | 1 |
