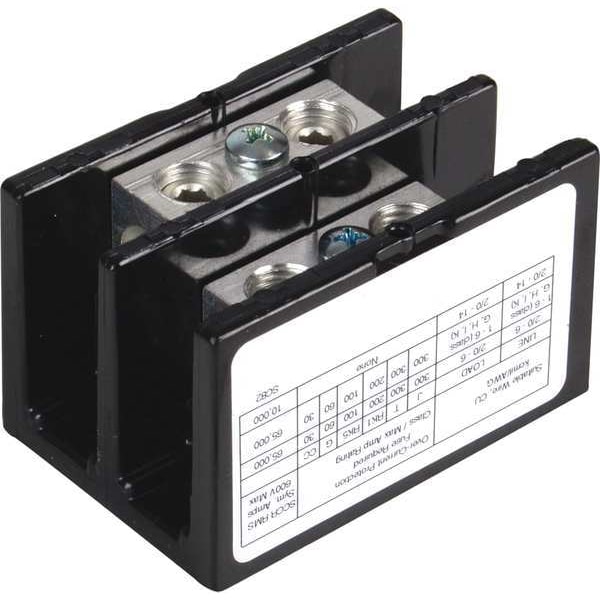

Pwr Dist Block, 175A, 2P, 2/0-14 AWG, 600VAC
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 2 |
| Max. Amps | 175 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 14 to 2/0 AWG |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 14 to 2/0 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC |
| Standards | CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2 |
| Depth | 1.78 in |
| Width | 1.94 in |
| Length | 2.88 in |
| Length (Straight Wireway) | 2.88 in |
| Maximum Voltage | 600 V AC/DC |
| For Load Copper Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Maximum | 2/0 AWG |
| Overall Length | 2.88 in |
| Special Features | 18 Months Warranty, Surface Mount |
| Line Side Connection Type | Lug |
| Load Side Connection Type | Lug |
| Overall Width | 1.94 in |
| Primary Wire Range | 14 to 2/0 AWG |
| Line Connections/Pole | 1 |
| Number of Circuits | 2 |
| Terminal Material | Aluminum |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| Maximum Current - Copper Conductor | 175 A |
| For Line Copper Wire Size - Maximum | 2/0 AWG |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Overall Depth | 1.78 in |
| Secondary Wire Range | 14 to 2/0 AWG |
| Maximum Operating Temperature | 302 deg F |
| Minimum Operating Temperature | -40 deg F |
| Load Connections/Pole | 1 |
| For Load Copper Wire Size - Maximum | 2/0 AWG |
| For Load Aluminum Wire Size - Maximum | 2/0 AWG |
| Maximum Current - Aluminum Conductor | 135 A |
| For Line Copper Wire Size - Minimum | 14 AWG |
| RoHS Compliant | Yes |
| For Conductor Material | Aluminum, Copper |
| Housing Material | Phenolic |
| Amps | 135 (Al conductor), 175 (Cu Conductor) |
| Mounting | Surface Mount |
| Electrical Connection | Tin plated Aluminium Lugs |
| Min. Operating Temp. | -40°F |
| Material | Phenolic |
| Features | Mercury Free |
| Wire Strip Length | 1/2 in (Line), 1/2 in (Load) |
| Max. Operating Temp. | 302°F |
| Package Quantity | 1 |
