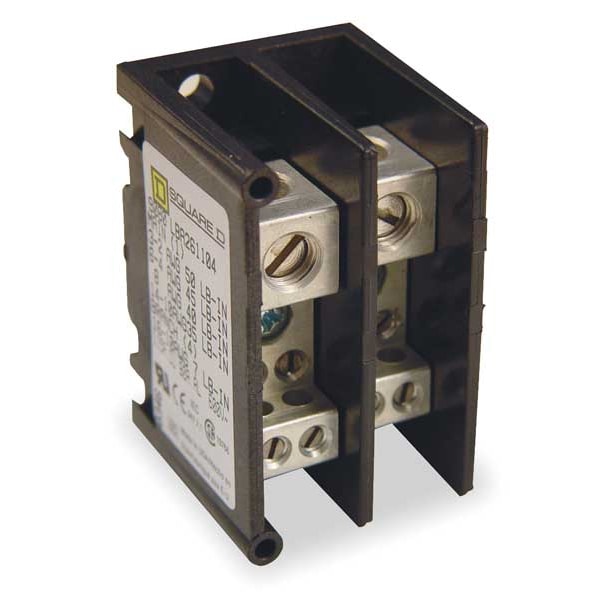

Bloque de distribución de energía, 310A, 2 polos, calibre 6AWG-350 MCM, 600V
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 2 |
| Max. Amps | 310 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 6 AWG to 350 MCM |
| Secondary Connection/Pole | 1 |
| Secondary Wire Range (AWG) | 6 AWG to 350 MCM |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC |
| Depth | 2.61 in |
| Width | 3.47 in |
| Standards | CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2 |
| Length | 13.4 in |
| Length (Straight Wireway) | 13.4 in |
| For Load Copper Wire Size - Minimum | 6 AWG |
| Line Connections/Pole | 1 |
| Special Features | 18 Months Warranty, Surface Mount |
| For Load Copper Wire Size - Maximum | 350 kcmil |
| Terminal Material | Aluminum |
| For Conductor Material | Aluminum, Copper |
| Overall Width | 1.94 in |
| Maximum Current - Copper Conductor | 310 A |
| For Line Copper Wire Size - Maximum | 350 kcmil |
| RoHS Compliant | Yes |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| Overall Depth | 2.61 in |
| Maximum Operating Temperature | 302 deg F |
| Overall Length | 3.38 in |
| Primary Wire Range | 6 AWG to 350 kcmil |
| For Line Aluminum Wire Size - Maximum | 350 kcmil |
| Housing Material | Phenolic |
| For Line Copper Wire Size - Minimum | 6 AWG |
| For Load Aluminum Wire Size - Minimum | 6 AWG |
| Minimum Operating Temperature | -40 deg F |
| Maximum Voltage | 600 V AC/DC |
| Line Side Connection Type | Lug |
| Load Connections/Pole | 1 |
| Housing Color | Black |
| Maximum Current - Aluminum Conductor | 250 A |
| Number of Circuits | 2 |
| Secondary Wire Range | 6 AWG to 350 MCM |
| For Load Aluminum Wire Size - Maximum | 350 kcmil |
| Load Side Connection Type | Lug |
| Mounting | Surface Mount |
| Amps | 250 (Al conductor), 310 (Cu Conductor) |
| Min. Operating Temp. | -40°F |
| Max. Operating Temp. | 302°F |
| Features | Mercury Free |
| Electrical Connection | Tin plated Aluminium Lugs |
| Material | Phenolic |
| Wire Strip Length | 1.06 in (Line), 1.06 in (Load) |
| Package Quantity | 1 |
