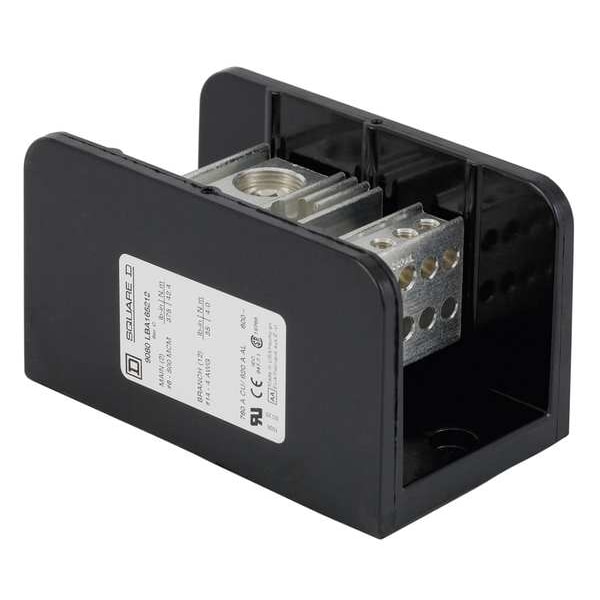

Pwr Dist Block, 335A, 1P, 6P Secondary, 600V
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 1 |
| Max. Amps | 335 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 6 AWG to 500 MCM |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | 14 to 2 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC |
| Depth | 2.61 in |
| Standards | CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2 |
| Length | 4 in |
| Width | 1.94 in |
| Length (Straight Wireway) | 4 in |
| Maximum Voltage | 600 V AC/DC |
| Maximum Current - Copper Conductor | 335 A |
| Line Connections/Pole | 1 |
| Load Connections/Pole | 6 |
| For Line Aluminum Wire Size - Maximum | 400 kcmil |
| Overall Length | 4-3/4 in |
| Line Side Connection Type | Lug |
| For Conductor Material | Aluminum, Copper |
| Special Features | 18 Months Warranty, Surface Mount |
| For Line Aluminum Wire Size - Minimum | 6 AWG |
| Maximum Operating Temperature | 302 deg F |
| Maximum Current - Aluminum Conductor | 270 A |
| Secondary Wire Range | 14 to 2 AWG |
| Housing Material | Phenolic |
| Terminal Material | Aluminum |
| For Load Copper Wire Size - Maximum | 2 AWG |
| Number of Circuits | 1 |
| For Line Copper Wire Size - Minimum | 6 AWG |
| Primary Wire Range | 6 AWG to 400 kcmil |
| Overall Width | 2.28 in |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| For Line Copper Wire Size - Maximum | 400 kcmil |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Minimum Operating Temperature | -40 deg F |
| Load Side Connection Type | Lug |
| RoHS Compliant | Yes |
| Overall Depth | 2.91 in |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Amps | 270 (Al conductor), 335 (Cu Conductor) |
| Mounting | Surface Mount |
| Features | Mercury Free |
| Electrical Connection | Tin plated Aluminium Lugs |
| Short Circuit Current Rating | 65 kA |
| Material | Phenolic |
| Min. Operating Temp. | -40°F |
| Max. Operating Temp. | 302°F |
| Wire Strip Length | Line 1.06 in; Load 0.56 in top; Load 1 in bottom |
| Package Quantity | 1 |
