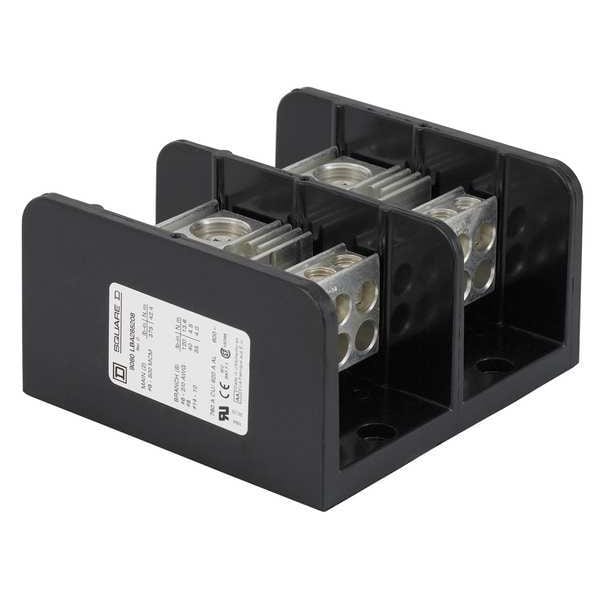

Bloque de distribución de energía, 760A, 2 polos, 8 puntos secundarios, 600V.
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 2 |
| Max. Amps | 760 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | 4 AWG to 500 MCM |
| Secondary Connection/Pole | 8 |
| Secondary Wire Range (AWG) | 14 to 2/0 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC |
| Length | 5-1/2 in |
| Standards | CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2 |
| Depth | 3.12 in |
| Width | 5.85 in |
| Length (Straight Wireway) | 5-1/2 in |
| For Conductor Material | Aluminum, Copper |
| Special Features | 18 Months Warranty, Surface Mount |
| Housing Color | Black |
| Housing Material | Phenolic |
| For Load Aluminum Wire Size - Maximum | 2/0 AWG |
| Number of Circuits | 2 |
| Overall Length | 5-1/2 in |
| For Line Copper Wire Size - Minimum | 4 AWG |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Overall Depth | 3.13 in |
| Maximum Operating Temperature | 302 deg F |
| For Load Copper Wire Size - Maximum | 2/0 AWG |
| For Line Aluminum Wire Size - Maximum | 500 kcmil |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Maximum Current - Aluminum Conductor | 620 A |
| Primary Wire Range | 4 AWG to 500 kcmil |
| Maximum Current - Copper Conductor | 760 A |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Overall Width | 5.88 in |
| Load Side Connection Type | Lug |
| Terminal Material | Aluminum |
| Line Connections/Pole | 2 |
| Maximum Voltage | 600 V AC/DC |
| Minimum Operating Temperature | -40 deg F |
| For Line Aluminum Wire Size - Minimum | 4 AWG |
| Load Connections/Pole | 8 |
| Line Side Connection Type | Lug |
| Secondary Wire Range | 14 to 2/0 AWG |
| RoHS Compliant | Yes |
| Mounting | Surface Mount |
| Amps | 620 (Al conductor), 760 (Cu Conductor) |
| Min. Operating Temp. | -40°F |
| Wire Strip Length | Load 0.75 in top; Line 1.13 in; Load 1.38 in bottom |
| Electrical Connection | Tin plated Aluminium Lugs |
| Features | Mercury Free |
| Material | Phenolic |
| Max. Operating Temp. | 302°F |
| Package Quantity | 1 |
