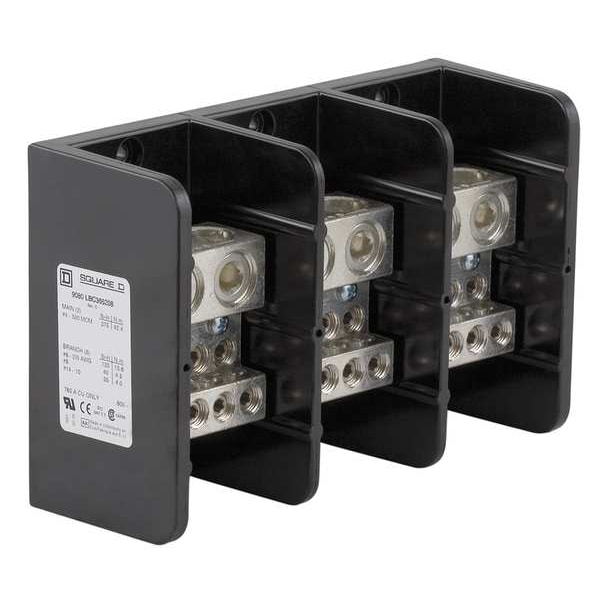

Pwr Dist Block, 760A, 3P, 2AWG-500 MCM, 600V
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 3 |
| Max. Amps | 760 |
| Primary Connections/Pole | 2 |
| Primary Wire Range (AWG) | 4 AWG to 500 MCM |
| Secondary Connection/Pole | 8 |
| Secondary Wire Range (AWG) | 14 to 2/0 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 600V AC |
| Width | 8.54 in |
| Depth | 3.12 in |
| Length | 5-1/2 in |
| Standards | CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2 |
| Length (Straight Wireway) | 5-1/2 in |
| Maximum Current - Copper Conductor | 760 A |
| Overall Depth | 3.13 in |
| Minimum Operating Temperature | -40 deg F |
| Terminal Material | Copper |
| Line Connections/Pole | 2 |
| Line Side Connection Type | Lug |
| Load Side Connection Type | Lug |
| RoHS Compliant | Yes |
| Maximum Voltage | 600 V AC/DC |
| Housing Material | Phenolic |
| For Conductor Material | Copper |
| Load Connections/Pole | 8 |
| Overall Width | 8.54 in |
| For Line Copper Wire Size - Minimum | 4 AWG |
| For Load Copper Wire Size - Maximum | 2/0 AWG |
| Number of Circuits | 3 |
| Special Features | 18 Months Warranty, Surface Mount |
| Overall Length | 5-1/2 in |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Secondary Wire Range | 14 to 2/0 AWG |
| Primary Wire Range | 4 AWG to 500 kcmil |
| For Line Copper Wire Size - Maximum | 500 kcmil |
| Maximum Operating Temperature | 302 deg F |
| Amps | 760 (Cu Conductor) |
| Mounting | Surface Mount |
| Wire Strip Length | Load 0.75 in top; Line 1.13 in; Load 1.38 in bottom |
| Min. Operating Temp. | -40°F |
| Features | Mercury Free |
| Electrical Connection | Tin plated Copper Lugs |
| Max. Operating Temp. | 302°F |
| Material | Phenolic |
| Package Quantity | 1 |
