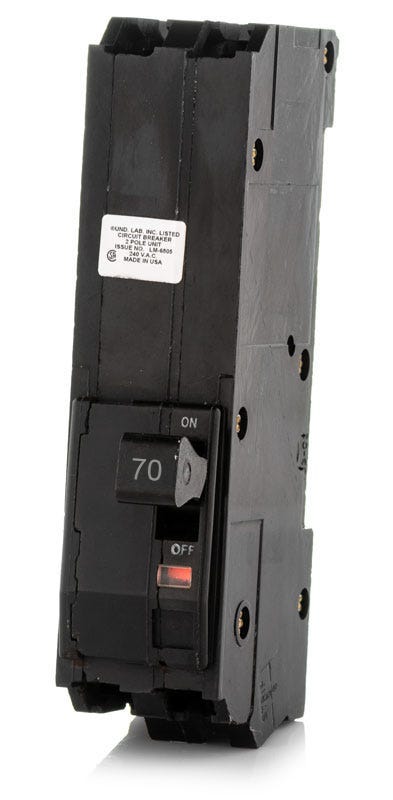

The Square D Q1B270 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The Q1B270 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | Q1B |
| Amperage | 70 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | Q1B |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Temperature Rating | 40 °C |
| Mpn | Q1B270 |
