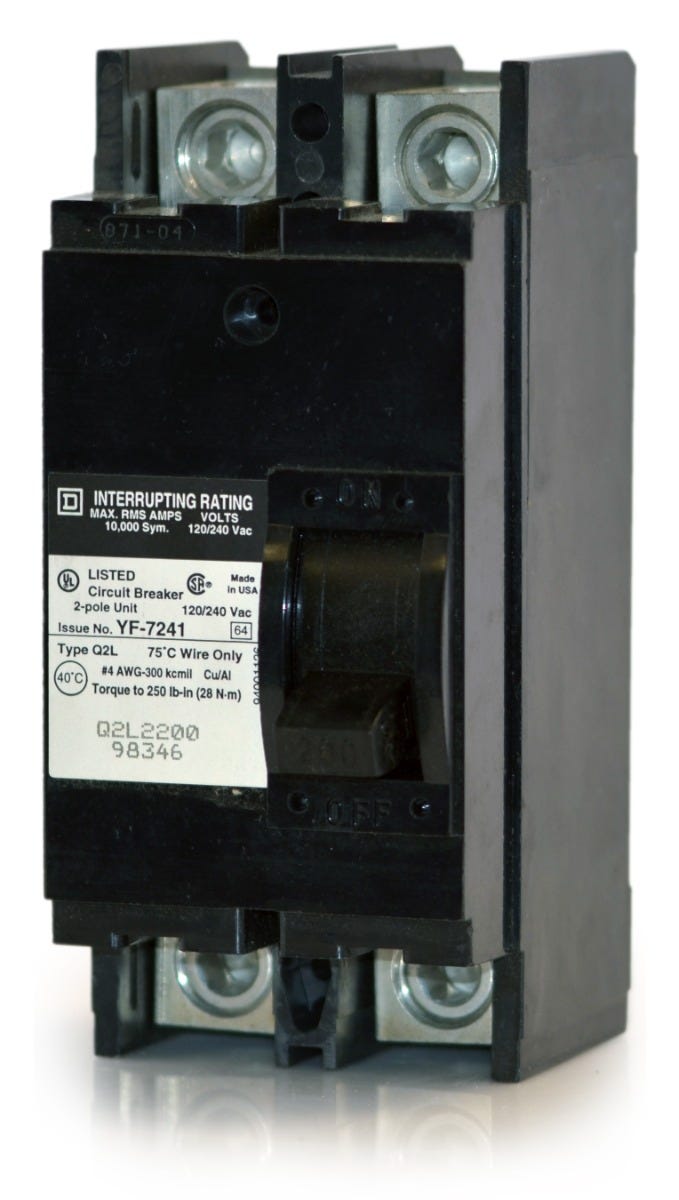

The Square D Q2L2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The Q2L2200 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | Q2 |
| Amperage | 200 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC@240V |
| Frame Type | Q2L |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Mpn | Q2L2200 |
| Upc | 722511280312 |
