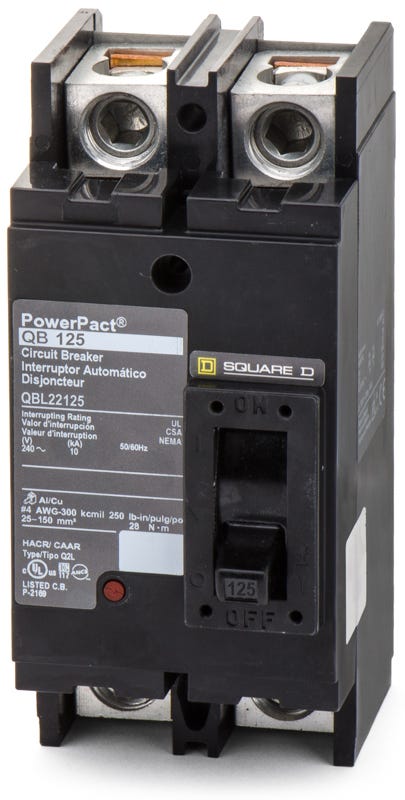

The Square D QBL22125 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240VAC. The QBL22125 has a feed-thru connection type and includes LI - long-time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | PowerPacT Q |
| Amperage | 125 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Unit |
| Approval | UL, CSA, NEMA, NOM |
| Interrupting Rating | 10kAIC at 240VAC |
| Frame Type | QBL |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 3.93 |
| Width (in) | 3 |
| Height (in) | 6.47 |
| Standards | HACR |
| Temperature Rating | 40 to 70 °C |
| Actuator Type | Operating Handle |
| Mpn | QBL22125 |
| Upc | 785901412557 |
| Gtin | 785901412557 |
