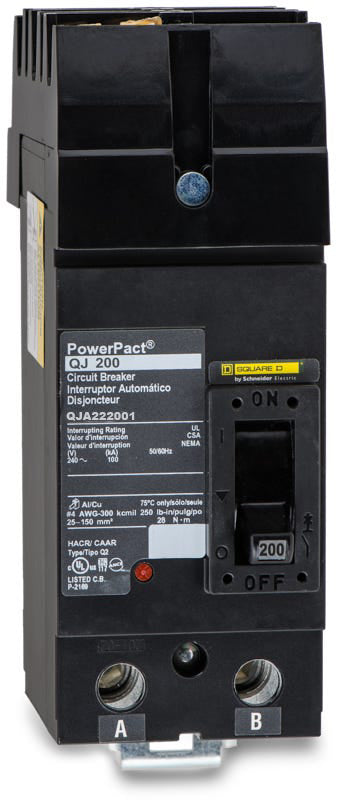

The Square D QJA222001 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240VAC. It has an interrupting rating of 100kAIC@240V. The QJA222001 has a I-Line style plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QJA |
| Amperage | 200 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 100kAIC@240V |
| Frame Type | QJA |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| For Use With | Overcurrent Protection and Switching on AC Systems |
| Standards | UL, CSA, NEMA, NOM, ANCE, IEC, RoHS |
| Temperature Rating | 104 to 158°F (40 to 70°C) |
| Actuator Type | Operating Handle |
| Mpn | QJA222001 |
| Gtin | 785901484325 |
