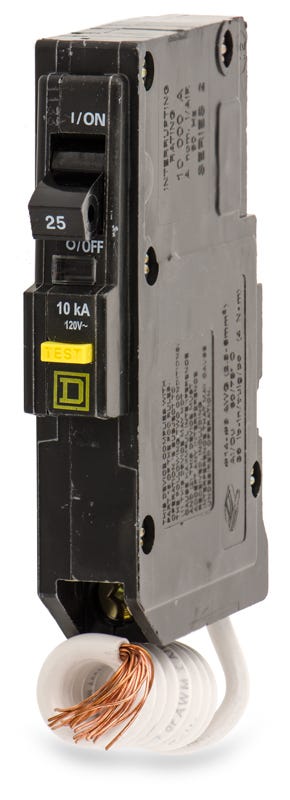

The Square D QO125GFI is a 1 Pole molded case ground fault circuit breaker with a current rating of 25 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120VAC. The QO125GFI has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 25 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Contactor Type | Magnetic |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120VAC |
| Frame Type | QO |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Pressure Plate |
| Length (in) | 2.9 |
| Width (in) | 0.7 |
| Height (in) | 4.1 |
| Wire Gauge | AWG 14 to AWG 8, AWG 12 to AWG 8, Cu/Al |
| For Use With | QO Load Centers and NQ Panelboards |
| Standards | RoHS, REACh, HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Breaker Feature | Mercury Free |
| Actuator Type | Paddle |
| Max Wire Size | 8 AWG |
| Min Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Mpn | QO125GFI |
| Upc | 785901255086 |
| Gtin | 00785901255086 |
