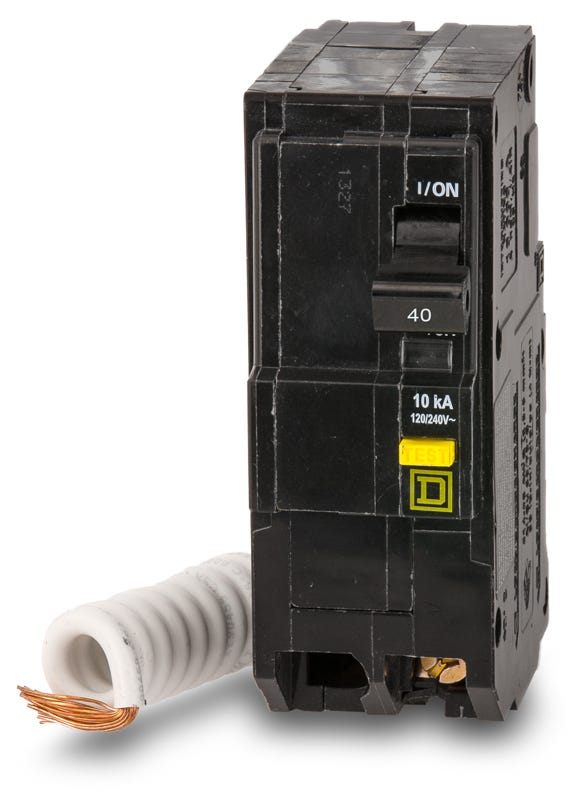

The Square D QO240GFI is a 2 Pole molded case ground fault circuit breaker with a current rating of 40 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QO240GFI has a plug-in connection type and includes LI - long-time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 40 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | QO |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Box Lugs |
| Length (in) | 2.9 |
| Width (in) | 1.5 |
| Height (in) | 4.1 |
| Wire Gauge | AWG 14 to AWG 6, Copper, AWG 12 to AWG 4, Aluminum |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | QO240GFI |
| Upc | 785901764854 |
| Gtin | 785901764854 |
