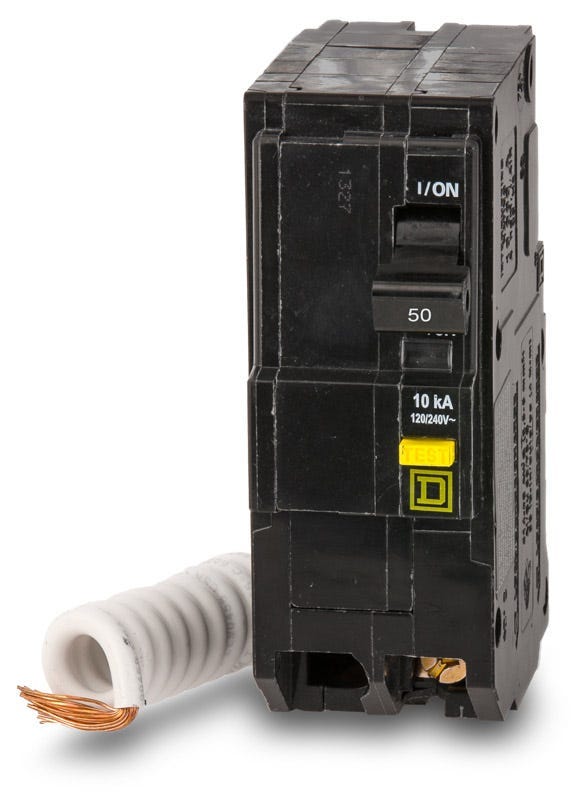

The Square D QO250GFI is a 2 Pole thermal magnetic molded case ground fault circuit breaker with a current rating of 50 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kA at 120/240VAC. The QO250GFI has a plug-in mounting type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 50 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-In |
| Approval | CSA, UL |
| Interrupting Rating | 10kA120/240VAC 50/60 Hz |
| Frame Type | QO |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Lug |
| Wire Gauge | 12-4 AWG Aluminum, 14-6 AWG Copper |
| For Use With | QO Load Centers and NQ Panelboards |
| Standards | RoHS |
| Temperature Rating | 104°F (40°C) |
| Circuit Breaker Type | Ground Fault Protecting Class A 6mA |
| Actuator Type | Paddle |
| Mpn | QO250GFI |
| Gtin | 785901764861 |
