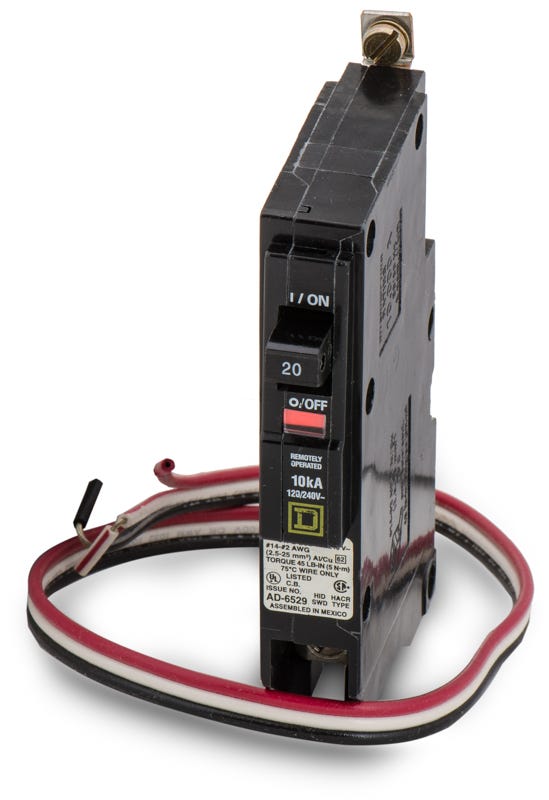

The Square D QOB120PL is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QOB120PL has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 20 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | QOB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Box Lugs |
| Length (in) | 2.9 |
| Width (in) | 0.7 |
| Height (in) | 4.6 |
| Wire Gauge | AWG 14 to AWG 2, AWG 12 to AWG 2, Cu, Al |
| For Use With | QOB Series Load Centers |
| Standards | RoHS, REACh, HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Mpn | QOB120PL |
| Upc | 785901404750 |
| Gtin | 785901404750 |
