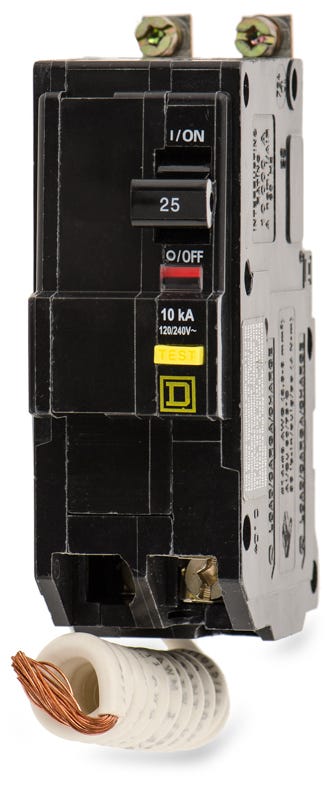

The Square D QOB225GFI is a 2 Pole molded case ground fault circuit breaker with a current rating of 25 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QOB225GFI has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 25 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | QOB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Pressure Plate |
| Length (in) | 2.9 |
| Width (in) | 1.5 |
| Height (in) | 4.6 |
| Wire Gauge | AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum |
| For Use With | QO Load Centers and NQ Panelboards |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Actuator Type | Paddle |
| Max Wire Size | AWG 8 |
| Min Wire Size | AWG 12, Al, AWG 14, Cu |
| Mpn | QOB225GFI |
| Upc | 785901562979 |
| Gtin | 00785901562979 |
