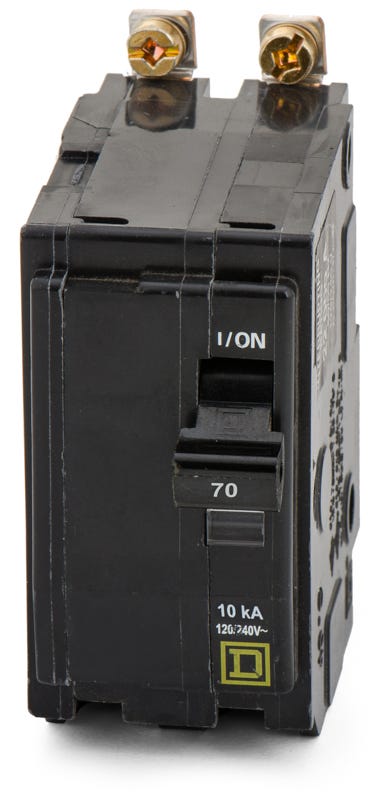

The Square D QOB270 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 70 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QOB270 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 70 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120/240VAC |
| Frame Type | QOB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Box Lugs |
| Length (in) | 2.9 |
| Width (in) | 1.5 |
| Height (in) | 3.1 |
| Wire Gauge | AWG 8 to AWG 2, Copper or Aluminum |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Mpn | QOB270 |
| Upc | 785901417040 |
| Gtin | 785901417040 |
