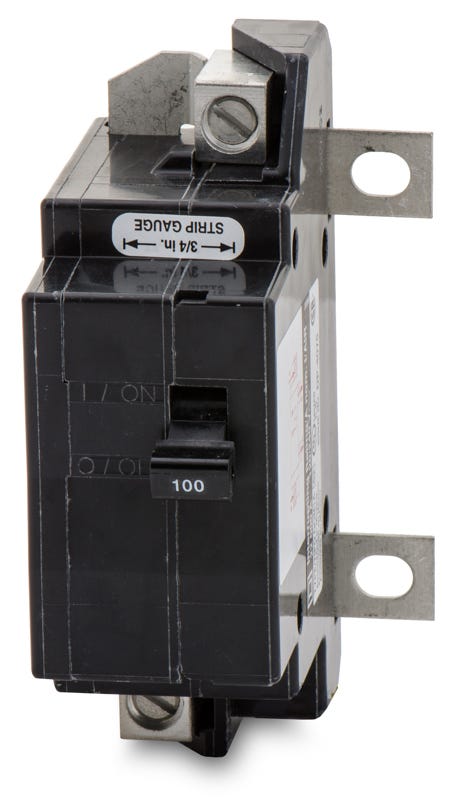

The Square D QOM100VH is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC at 120/240VAC. The QOM100VH has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
| Brand | Square D |
|---|---|
| Series | QOM |
| Amperage | 100 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 22kAIC at 120/240VAC |
| Frame Type | QOM |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Temperature Rating | 40 °C |
| Mpn | QOM100VH |
| Upc | 785901004035 |
| Gtin | 785901004035 |
